LOCATION
Kempegowda International Airport – Bangalore, India
Client
Bengaluru International Airport Ltd.
Product used
StrataWeb®
Application
Canal lining
About the project

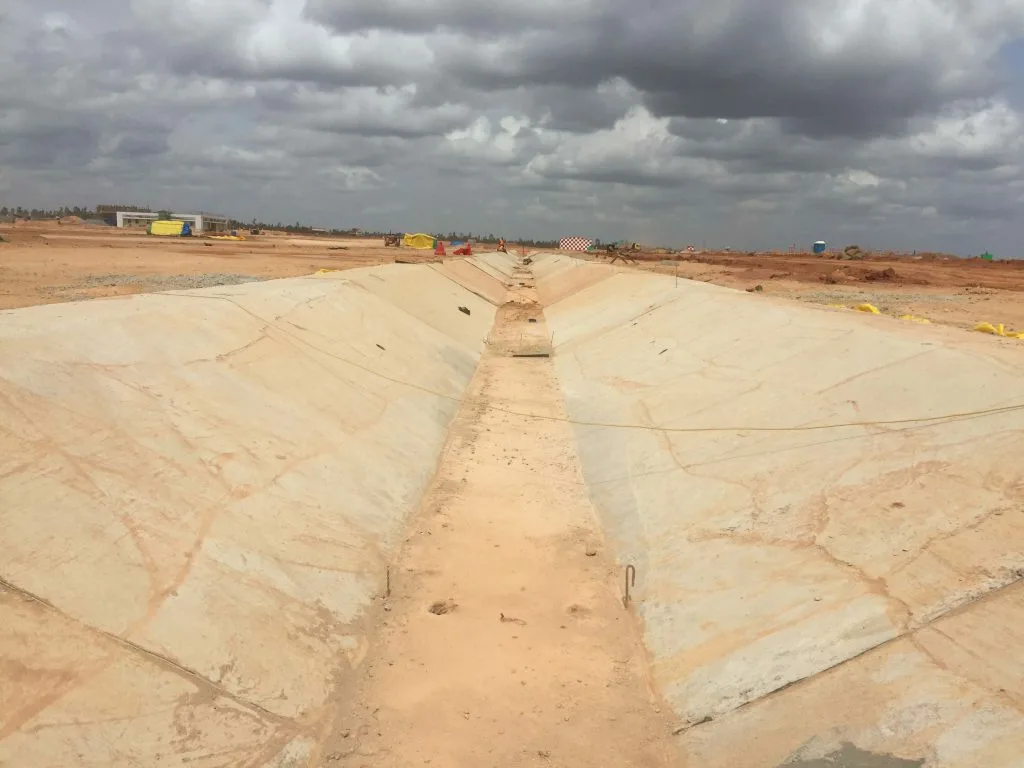

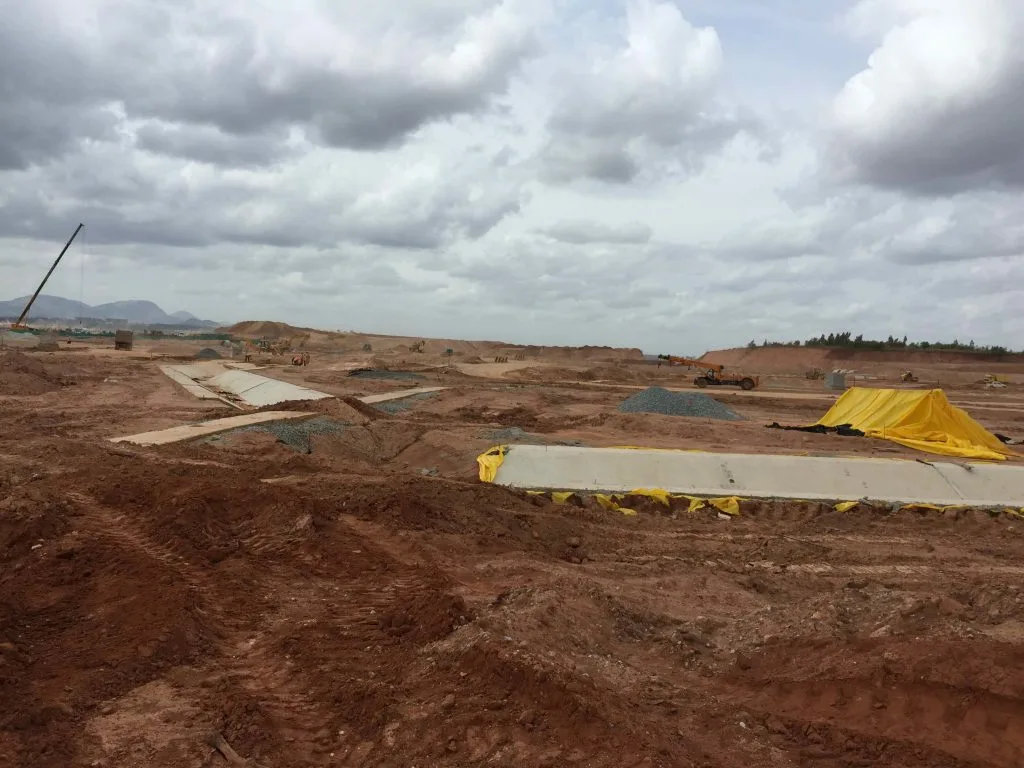

This project includes concrete lining using StrataWeb® geocells for a storm water drain located near the airport in Bangalore, Karnataka. The client was looking for a solution that enabled uniformity in the concrete and minimal maintenance.
The earlier approach in this case was using geomembrane with PCC lining. This approach was very expensive and time consuming. The main challenges were tight deadline to finish the project.
The traditional method was to use a geomembrane which would be an expensive and time-consuming affair. Strata’s geotechnical experts designed an innovative system using StrataWeb® and StrataWrap for the lining.

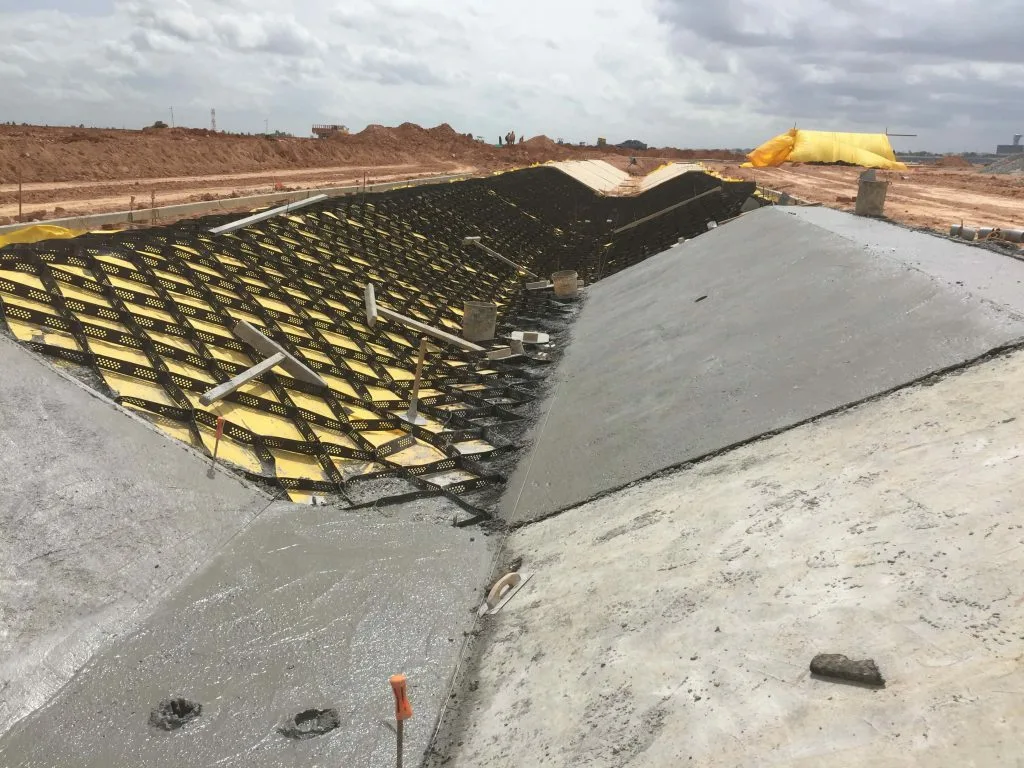

This reduced the thickness of the lining. The design also eliminated the need for shuttering and formwork that was required for the conventional concreting process. The construction time and costs were significantly reduced. StrataWeb® was infilled with concrete that ensured uniformity across the entire canal. No other solution could have been executed as fast, economically and effectively.

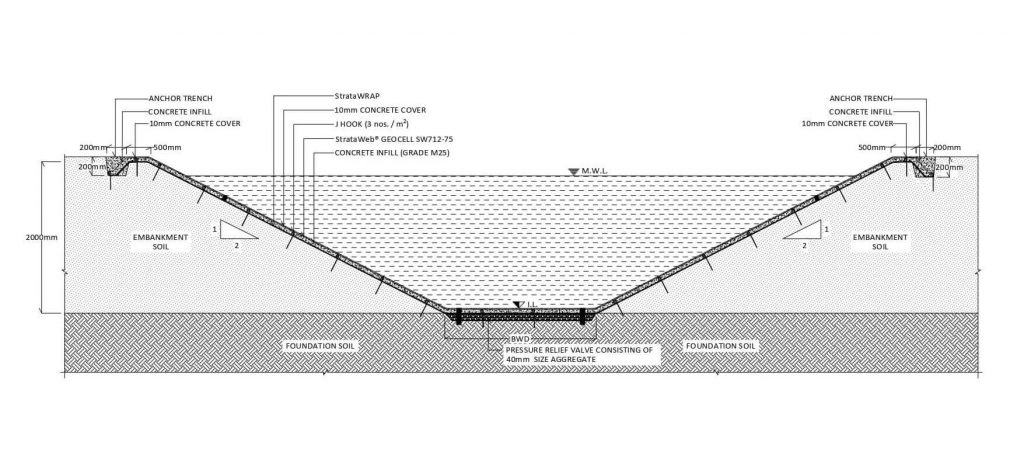

Technical drawing
CONSULTATION
From know-how to manufacture, installation
and support
Strata not only provides geotechnical products, but our team of 200+ engineers can help you with your turnkey project by supplying you with technical knowhow and support as to how our products can help you finish your projects in time while keeping costs down.
Send us your queries and we will get back to you with our expertise.
