OVERVIEW
A gift as precious as water should be held in the safest hands.
Strata helps in securing water containment and preventing erosion across canals, reservoirs, drains, and storm water ponds.
Slope lining

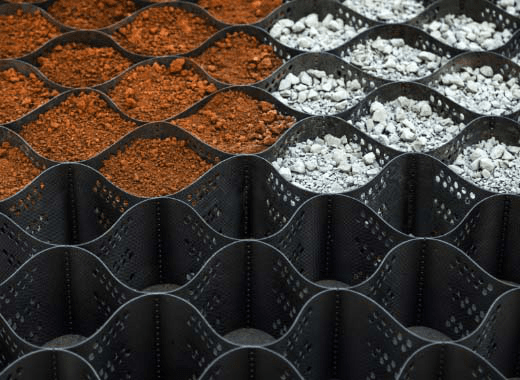

The honeycomb structure of StrataWeb® provides confinement to any infill and prevents it from being dislodged by the agents of erosion. StrataWeb® is a very versatile lining product and can work with various infill options such as concrete for a hard amour, soil with vegetation for an aesthetic green look in low velocity canals and reservoirs, or stone for cost effective lining.

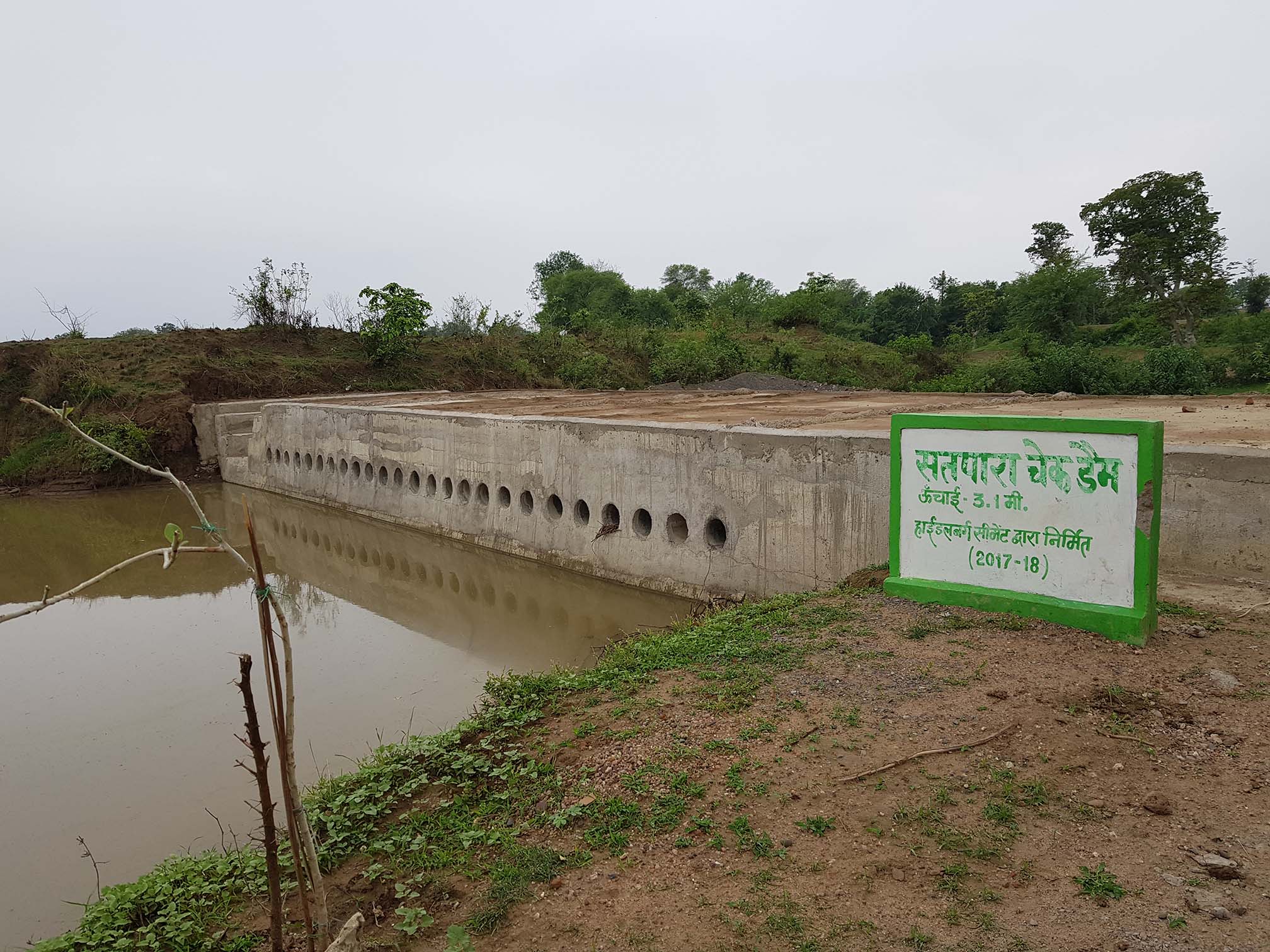

Check dam

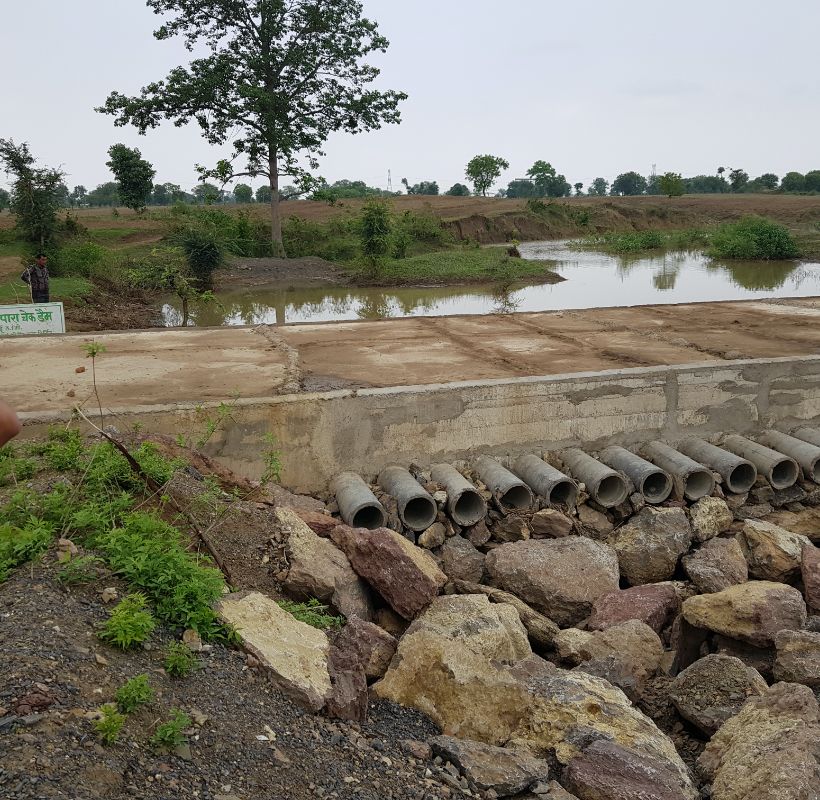

StrataWeb® geocells have several applications. One such innovative application is to construct a small check dam. The check dam is constructed to enhance groundwater recharge for the nearby farmlands. StrataWeb® being light-weight, handling is easy, and neither mechanised equipment nor skilled workers are required for construction. The spillway comprises a series of pipes below the crest, supplemented by a trapezoidal opening at one end.
One of the first check dams in South Asia was constructed near Satpara, Madhya Pradesh, India.

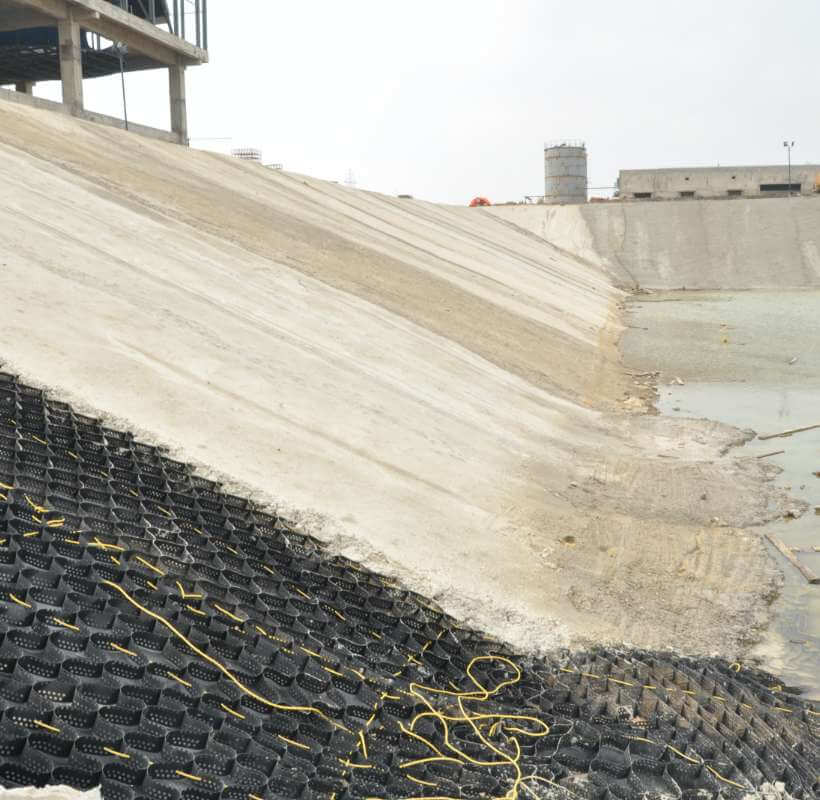

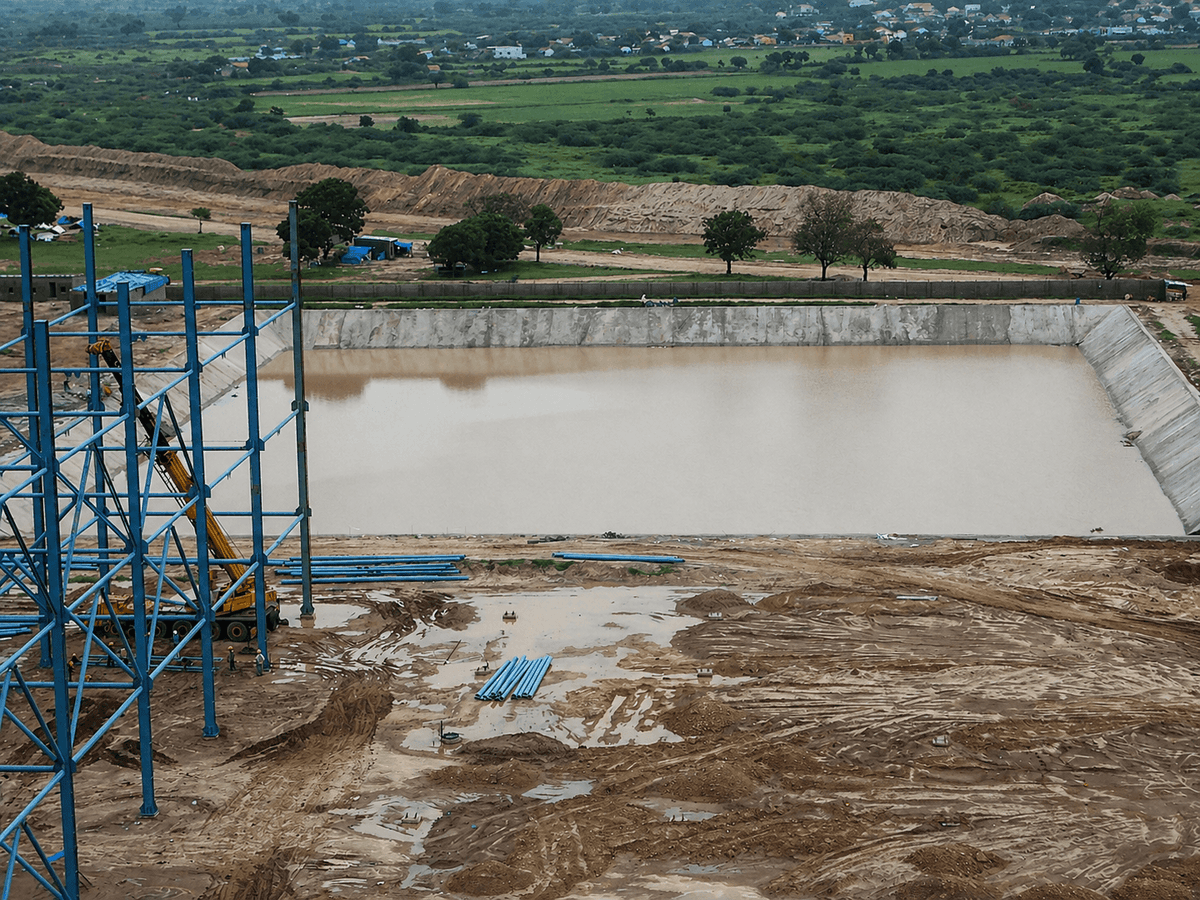

Drain lining/reservoir lining

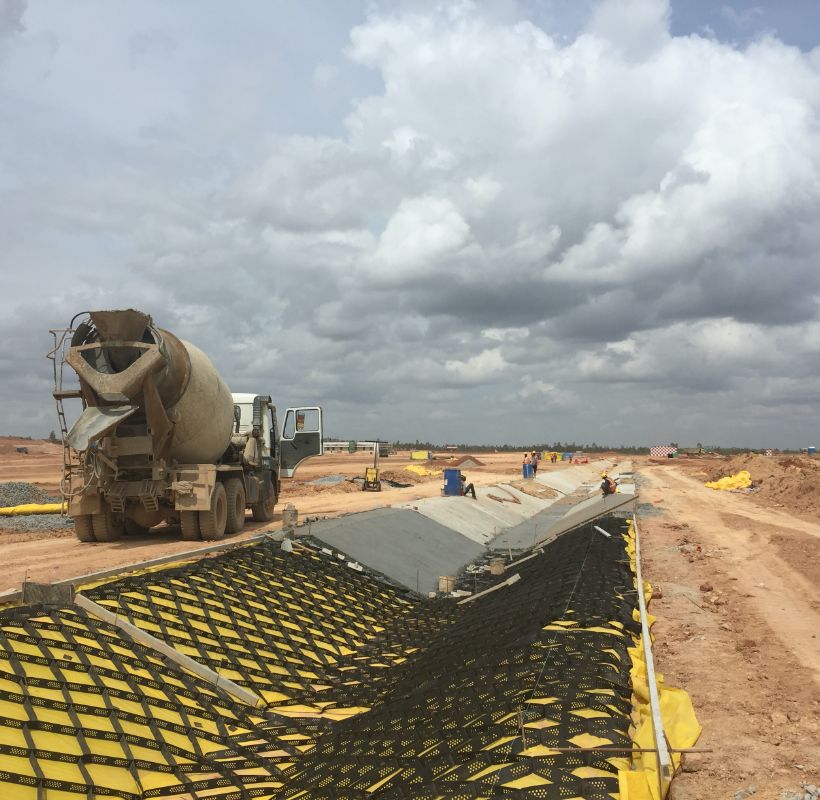

StrataWeb® is our cutting-edge geocell lining solution for chute drains and canals along highways. It is a tough, flexible, lightweight, perforated polymeric confinement system which is transported in its collapsed form, then unfolded/expanded onsite to form a honeycomb structure which is then laid out precisely and packed with evenly distributed aggregate material, making it a surprisingly efficient and economical alternative to the usual cumbersome methods.
We can supply you with a StrataWeb® package suited to your project specifications and offer technical design assistance as well.
- Strong, flexible and lightweight
- Highly economical and saves up to 30% costs
- Saves up to 20% time
- Creates a more stable mass
- Geocells conform better to distortions
- The lining is long-lasting

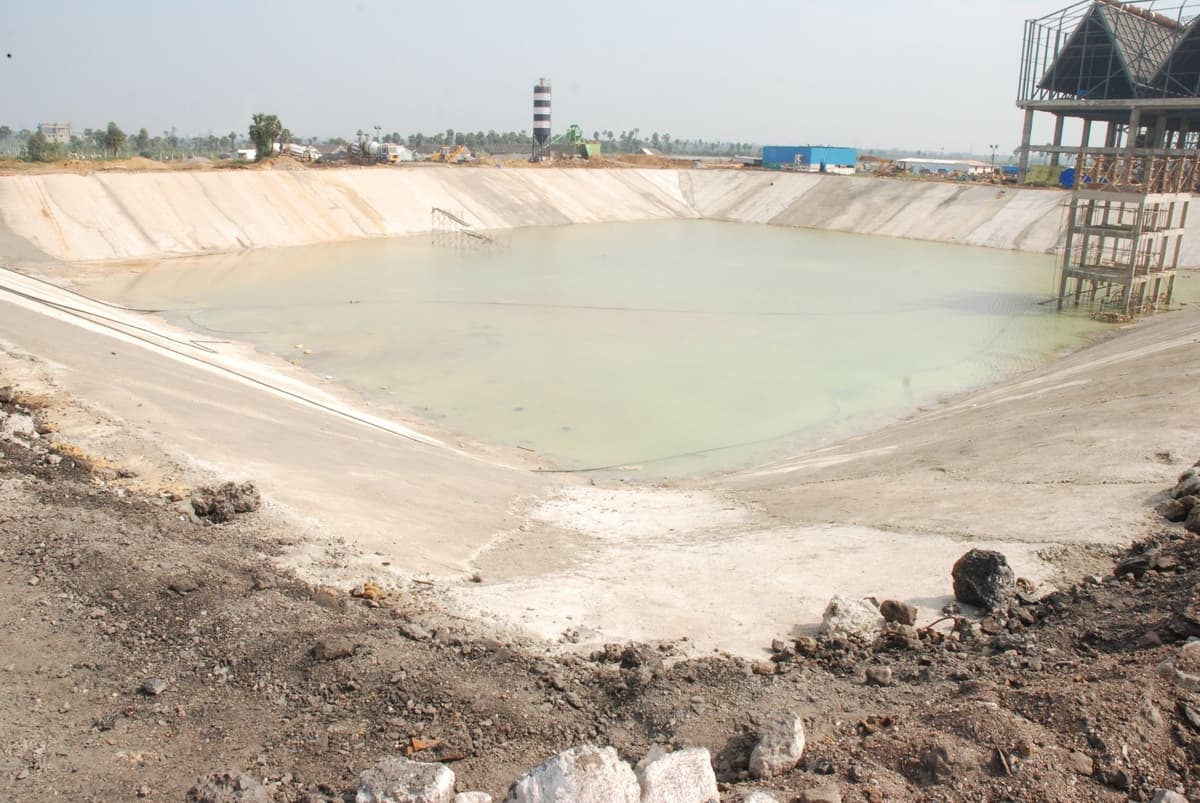

Waterproofing composites and salt barrier
Strata helps in securing water containment and preventing erosion across canals, reservoirs, drains, and storm water ponds.
Our products for water management
StrataWeb® (Product)

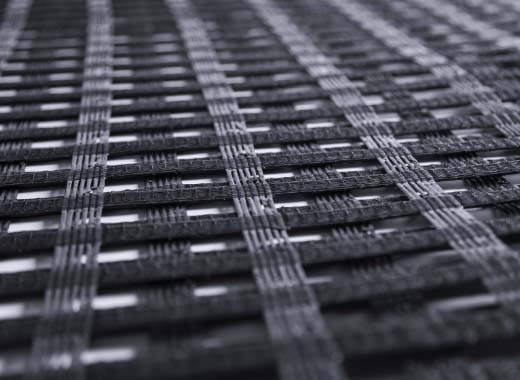

StrataGrid™ Uniaxial Geogrids (Product)
More success stories
StrataWeb® geocells – A slope erosion protection system for embankments
The Jordan Ministry of Energy and Mineral Resources (MEMR) was planning to build a petroleum strategic reserves terminal in the east of Amman, Jordan. They wanted to increase the petroleum storage capacity in the area, which required an increase in the base width of the embankment. The slopes of the embankment required protection from slope erosion.

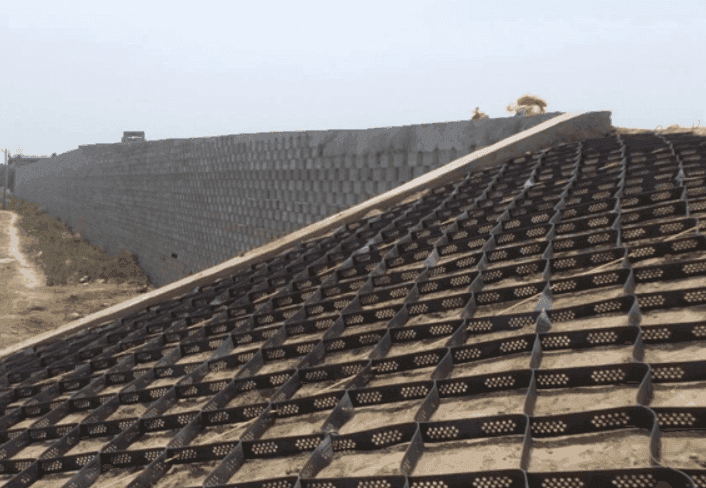

Slope protection of partial wall on flyover using StrataWeb® geocells
The ramps of the grade separators are constructed either as embankments with natural slopes or as reinforced soil walls. In the case of partial walls, where sloped embankments are supported on reinforced soil walls, the embankment slopes needed to be given adequate protection against soil erosion, which could otherwise damage the fascia of the underlying reinforced soil wall and also induce seepage into the system. The slopes of the embankments were of the order of 30° with the horizontal. The reinforced soil walls supporting the embankments were as high as 10 m. The heights of the embankments were of the order of 5 m.
Rehabilitation of road in the busy city town centre in Karnataka
Monsoons in North Karnataka are notorious for damage to roads. The site was plagued with problems like reflective cracks, potholes, undulating surfaces etc., resulting in slow traffic movement and heavy vehicular damage. This stretch had to be rehabilitated time and again over the past several years, and no solution was proving to be long-term. Since the area is a major commercial hub, it was impossible to close off this section for an extended period completely, so a quick but long-term solution was needed.
CONSULTATION
From know-how to manufacture, installation and support.
Strata not only provides geotechnical products, but our team of 200+ engineers can help you with your turnkey project by supplying you with technical knowhow and support as to how our products can help you finish your projects in time while keeping costs down.
Send us your queries and we will get back to you with our expertise.
