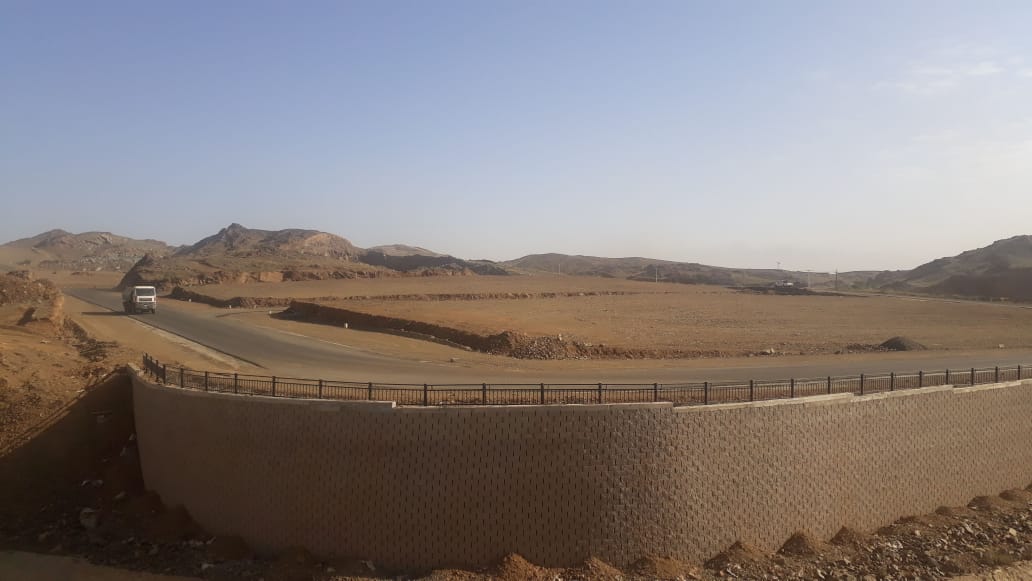

The project is situated in Abha, capital city of Aseer Province near the Red Sea in southwest Saudi Arabia.
- APPLICATIONS
We provide solutions across various sectors
Embankments over soft soils
Reinforced steep slopes
Erosion control
Retaining walls
Roadway improvement
Landfill construction
Load support
Drain lining / Reservoir lining - PRODUCTS & SYSTEMS
Strata’s offerings are high-performers all over the world
As one of the industry’s earliest pioneers, Strata’s products and systems have been field tested across the globe and are backed by relevant industry accreditations and testing requirements.
Strata Products
StrataGrid™
StrataGrid™ Biaxial (SGB)
StrataWeb®
Sleeve-It®
StrataTex HSR™ Strata systems
StrataSlope™
StrataWall™
StrataBlock™ - SECTORS
We have something for
everythingWe provide solutions for an array of complex site development challenges worldwide, across various sectors like highways, mining, landfills, railways, container yards, commercial and residential development, container yards, crane pads, loading aprons, access roads, parking lots, coastal solutions, channel linings, and so on.
Highways
Water infrastructure
Railways
Ports and container yards
Mining & landfills
Land development
Energy - RESOURCES
Deep dive into diagrams and numbers
Access our literature library to uncover all aspects of our internationally certified products and services, technical details, along with project specifications.
Brochures
Success stories
Product datasheets
CAD drawings - ABOUT US
Strata in a single snapshot
Strata is a global leader in geosynthetic manufacturing and geotechnical engineering. Over the past years of solving complex site development challenges worldwide, Strata Geosystems has erected an edifice of integrity and trust around its wide array of best-in-class offerings.
About Strata Global
Our capabilities
Our people
Careers
OVERVIEW
Interlocking, self-aligning units
StrataBlock™ reinforced soil wall is a composite system consisting of concrete block units in combination with a mass of soil which is reinforced and stabilised by StrataGrid™. StrataBlock™ wall units are self-aligning. They are cast with an inter-locking system in the form of an anchor shear key built into each unit which enables the alignment of blocks between two rows and connection to StrataGrid™. The shear key also ensures consistent batter. Another key feature offered by StrataBlock™ units is the staggered hollows formed by the alignment of blocks, when filled with gravel behave as vertical stone columns (via aggregates) which adds additional stability to the wall. Reinforced soil walls with StrataBlock™ fascia and StrataGrid™ reinforcement are relatively flexible structures. StrataBlock™ is dry-cast and because of its size and modularity, it provides a flexible fascia to the reinforced soil wall structure.
KEY ADVANTAGES
Why it’s unique?
- Significant cost savings compared to steel-reinforced concrete structures
- Provides 100% soil coverage for StrataGrid™ reinforcement
- Casting of blocks can start even before finalization of drawings
- No requirement of specialized machines for erection because of easy manual handling
- Can tolerate high differential settlements
- Lead to significant cost and time savings
- Walls built are virtually maintenance free
- Shape of the blocks creates staggered hollows that are filled with aggregates (drainage fill) which gives additional stability to the wall
- Reinforced soil walls with StrataBlock™ fascia and StrataGrid™ reinforcement are relatively flexible, open structures that facilitates water to drain through the fascia easily
- StrataBlock™ units can be incorporated in walls having sharp curves and corners
- The height of StrataBlock™ also ensures better control on backfill soil layer thickness and compaction during construction
What impact does it create?
Environmental
Time-efficient
Economical
GALLERY

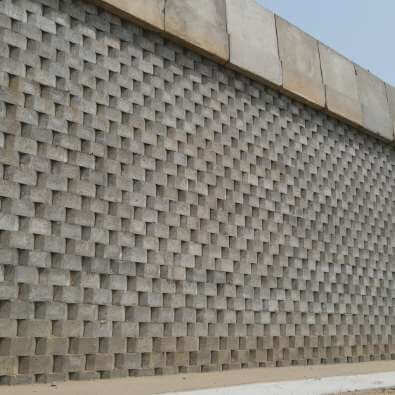

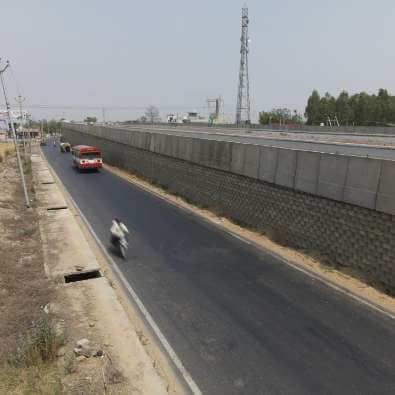

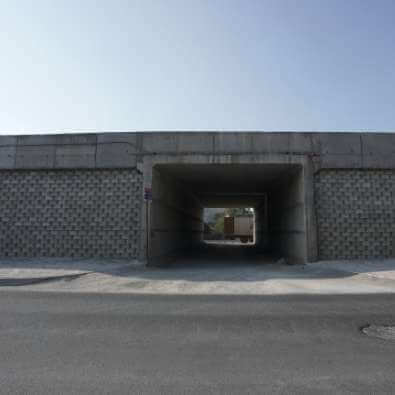

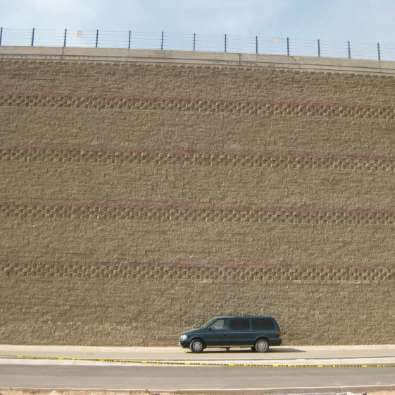

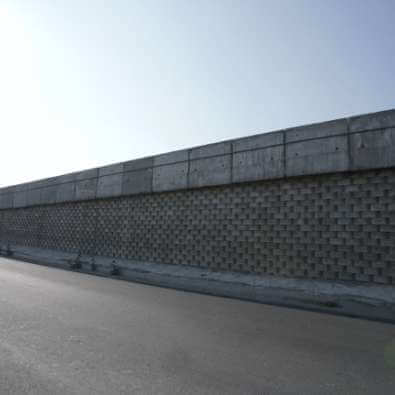

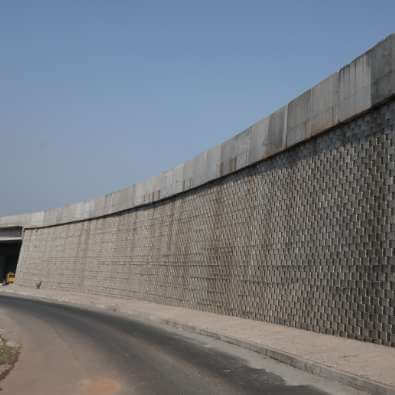

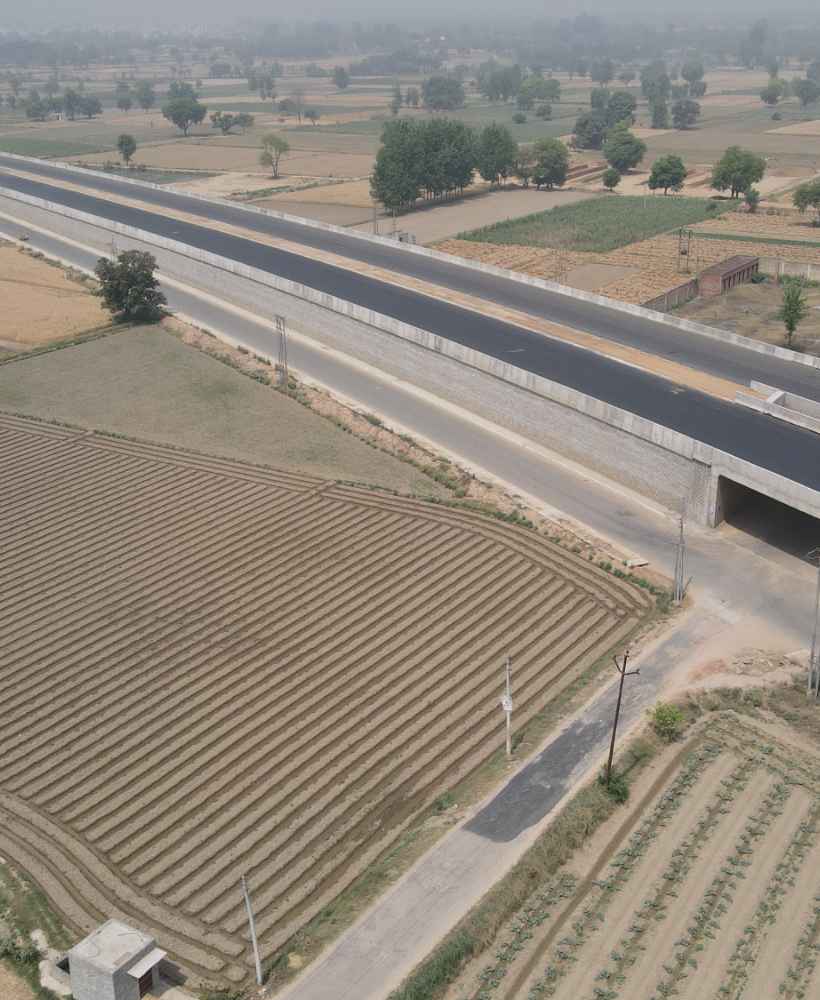

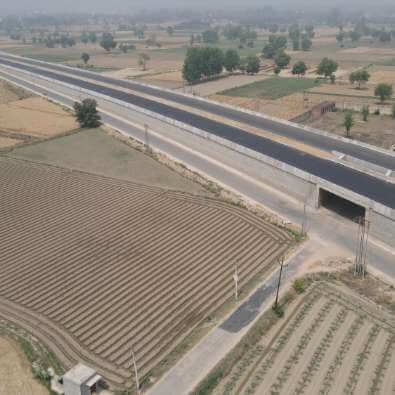

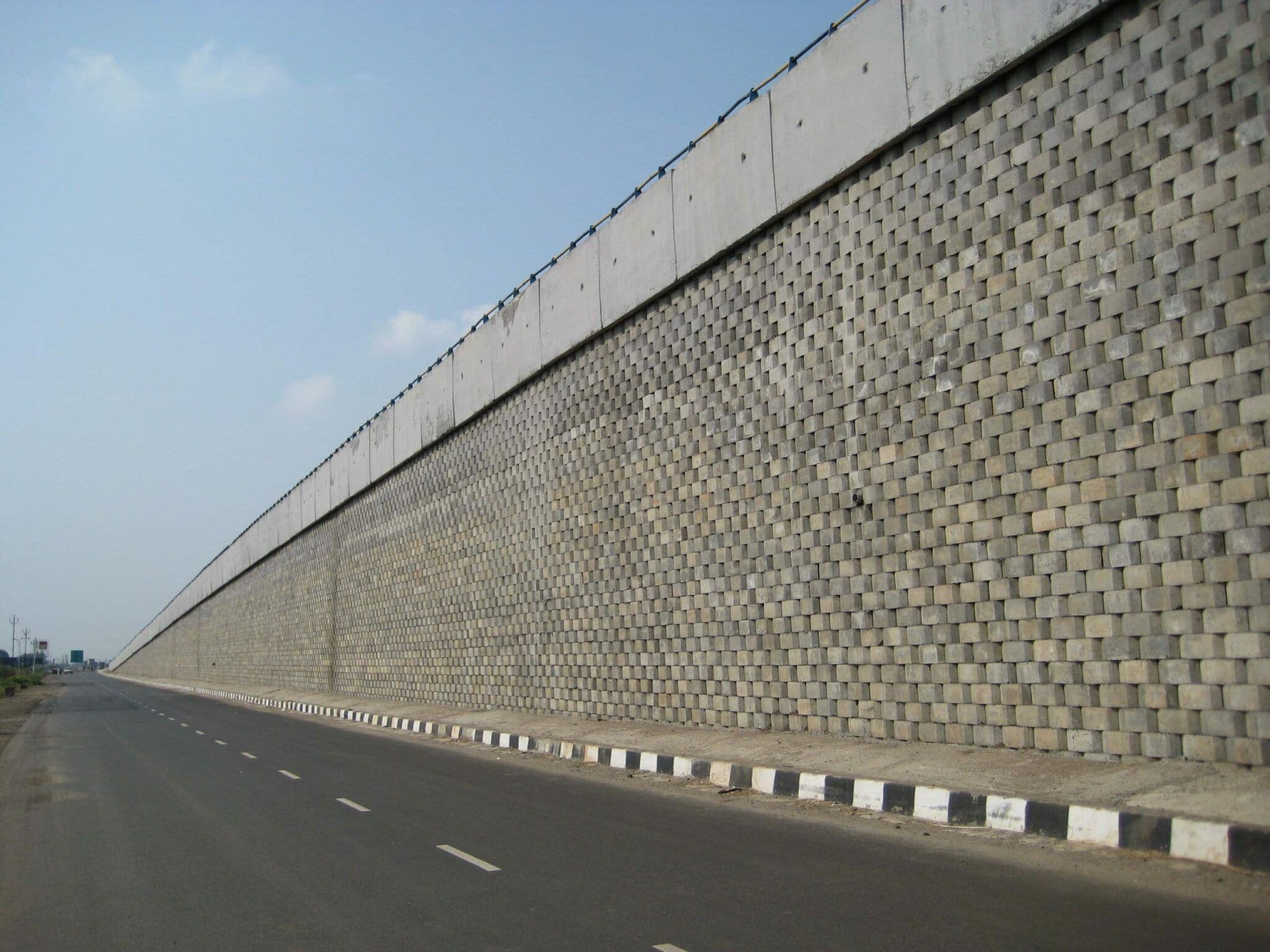

Some of our work with StrataBlock™ on live sites
RELATED PRODUCTS
Together as one – what strengthens StrataBlock™
StrataBlock™ reinforced soil wall is a composite system consisting of concrete block units as fascia in combination with a soil mass which is reinforced and stabilized by StrataGrid™.
| StrataGrid™ (Geogrid)

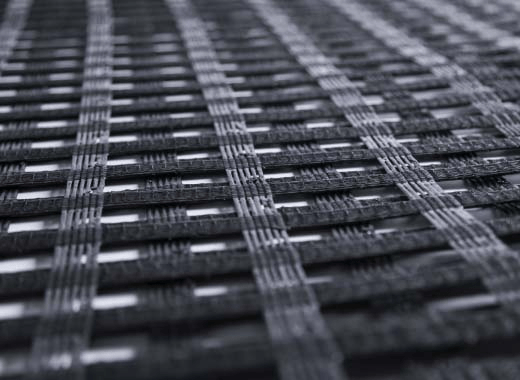

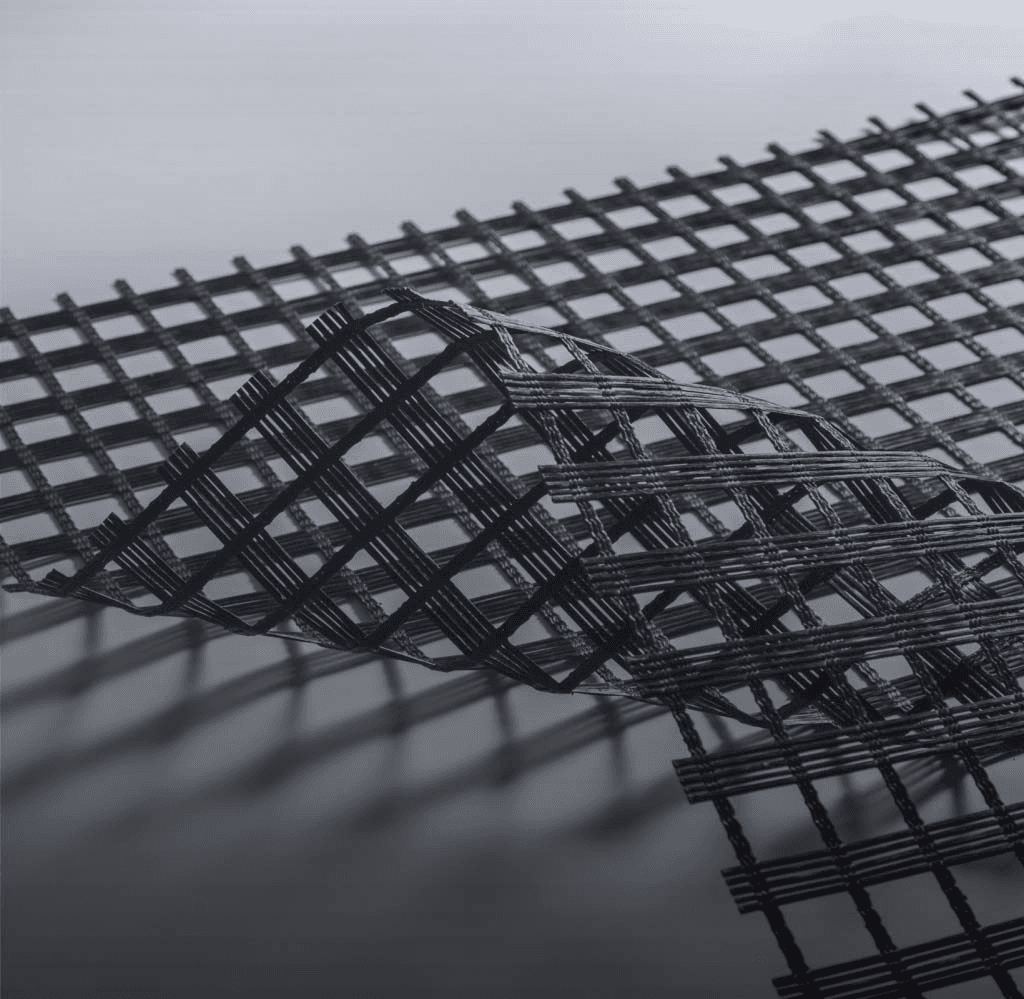

StrataGrid™ (geogrid) is a high performance soil reinforcement solution that is produced by knitting high-tenacity polyester yarn into a dimensionally-stable network of apertures to form a geometric grid.
| StrataBlock™ wall units

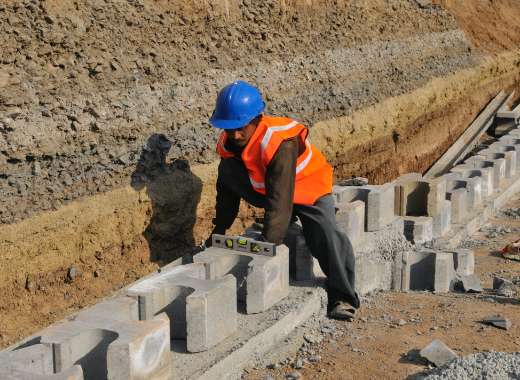

StrataBlock™ wall units have a built-in batter and are self-aligning. They are cast with an inter-locking system in the form of an anchor key built into each unit which enables the alignment of blocks. It minimizes grade changes and prevent from retention challenges.
