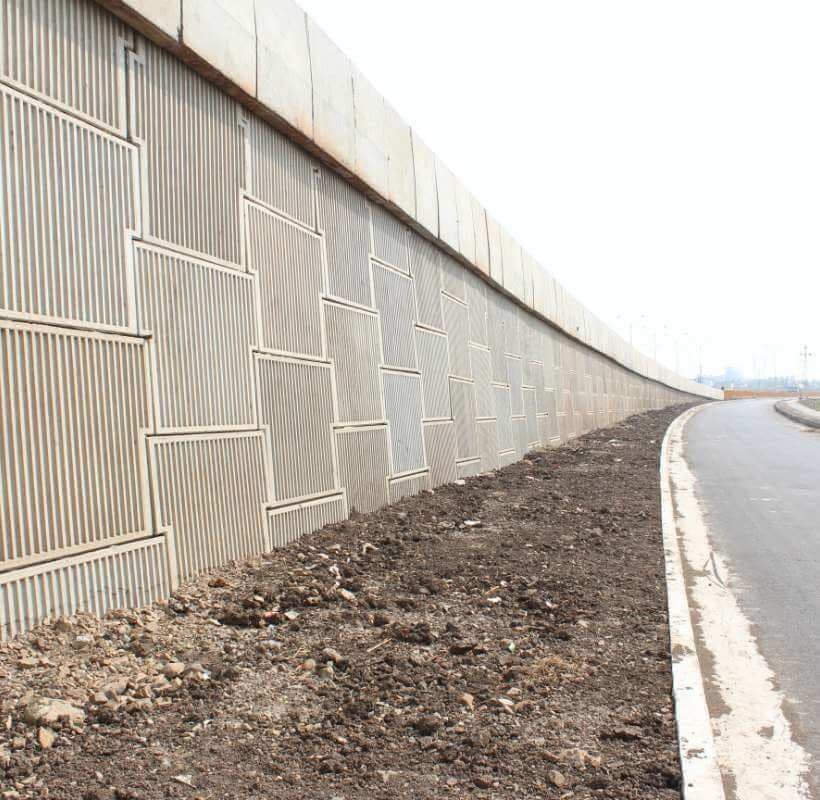

Build Strong Foundation of Soil Structures using StrataWall™
StrataWall™ is a precast concrete panel wall fascia for a reinforced soil structure. StrataWall™ is designed to give a positive connection with StrataGrid™ geogrids as a reinforcing material. The reinforced soil structure is a composite mass of non-plastic soil that is reinforced with StrataGrid™ geogrids. StrataWall™ panels are either T-shaped or square shaped with a thickness of 180 mm. It comes with a plain face or embellishment on the outer face.
The StrataWall™ system is a cost effective alternative to reinforced structure with steel reinforcements or conventional reinforced cement concrete retaining walls and ideal for walls of great height. StrataWall™ are placed with a slight inward batter and are wet cast with M30 grade of concrete using Fe 500 reinforcement cage to tackle various handling & design stresses. The StrataWall™ panels are precast close the project site for ease of logistics and faster construction. Strata provides innovative systems and technology that provide economic advantages while ensuring structural integrity and sound engineering principles.
What impact does our StrataWall™ create?
Environmental
Time-efficient
Economical
Key advantages of StrataWall™
What makes our StrataWall™ unique?
Cost Efficiency
Significant cost savings compared to conventional RCC structures
Settlement Tolerance & Structural Reliability
Tolerant of total or differential settlements.Excellent structural capacity
Handling & Installation Efficiency
Panels are designed for mechanized handling during shifting, transportation and erection.Fast installation
Fascia & Structural Integrity
Offers robust fascia due to positive connection
Environmental Consideration
Minimal impact on environmental areas (i.e. wetlands, natural habitats)
Water Flow & Backfill Design
The joints between panels are appropriately designed to allow free flow of water without migration of particles for backfill
Products used in Soft Soil Embankments

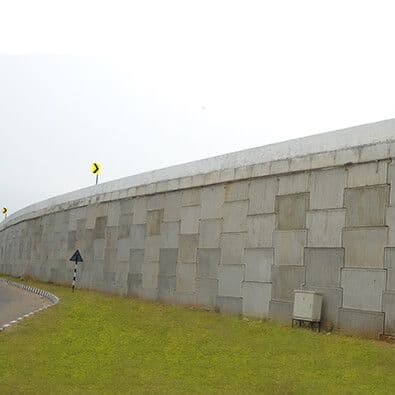

Embankment over soft soils using Uniaxial Geogrid

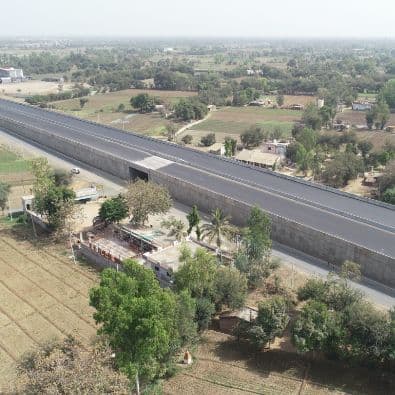

Block and panel walls for highways, landfills, and other retaining walls with Uniaxial Geogrid

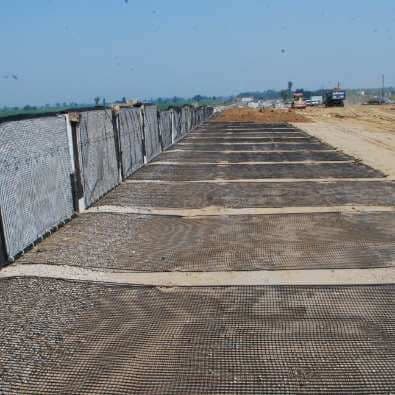

Below structural foundations using Uniaxial Geogrid

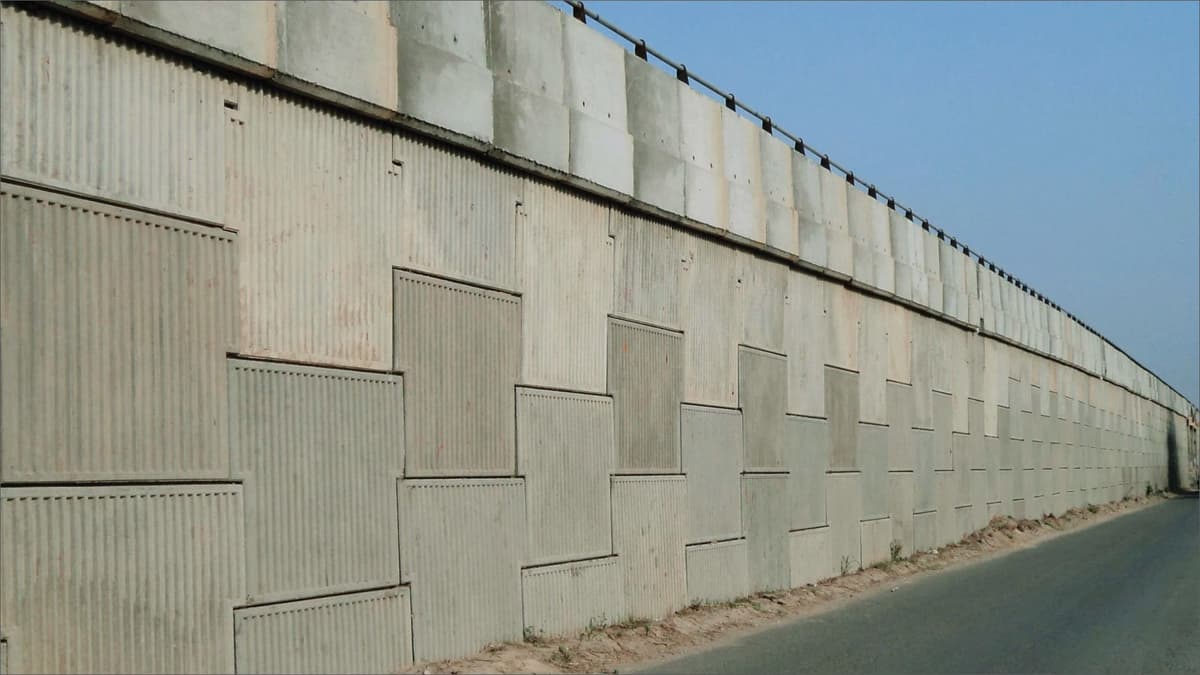

Reinforced steep soil slopes and embankments with Uniaxial Geogrid
Products used with StrataWall™ System

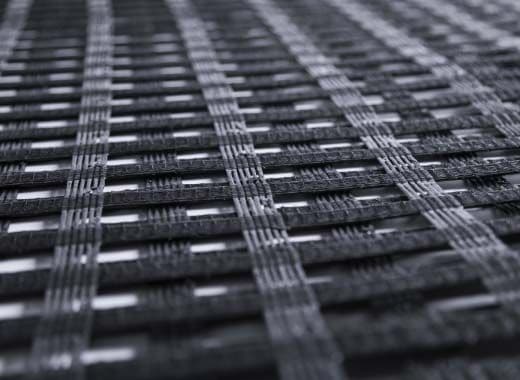

StrataGrid™ (Geogrid)
StrataGrid™ (geogrid) is a high performance soil reinforcement solution that is produced by knitting high-tenacity polyester yarn into a dimensionally-stable network of apertures to form a geometric grid.

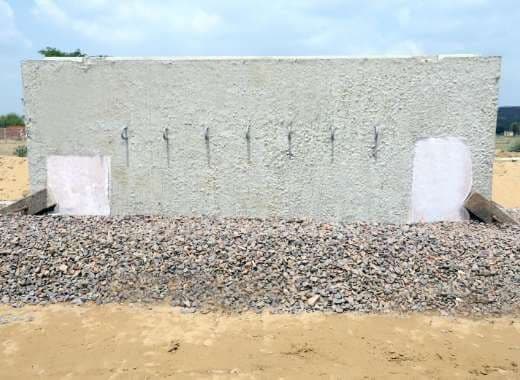

Strata Panel
Where can our StrataWall™ be used?
Avalanche bunds
Industrial/commercial buildings
Tailing dump extensions using StrataSlope™
Highway embankments using StrataSlope™
Railway embankments using StrataSlope™
Temporary platforms with StrataSlope™
Acoustic bunds using StrataSlope
StrataWall™ System Showcased in Real Projects
Success Stories
Infrastructure demands solutions that perform under pressure. See how our certified systems and expertise have delivered long- term stability in projects across the globe.

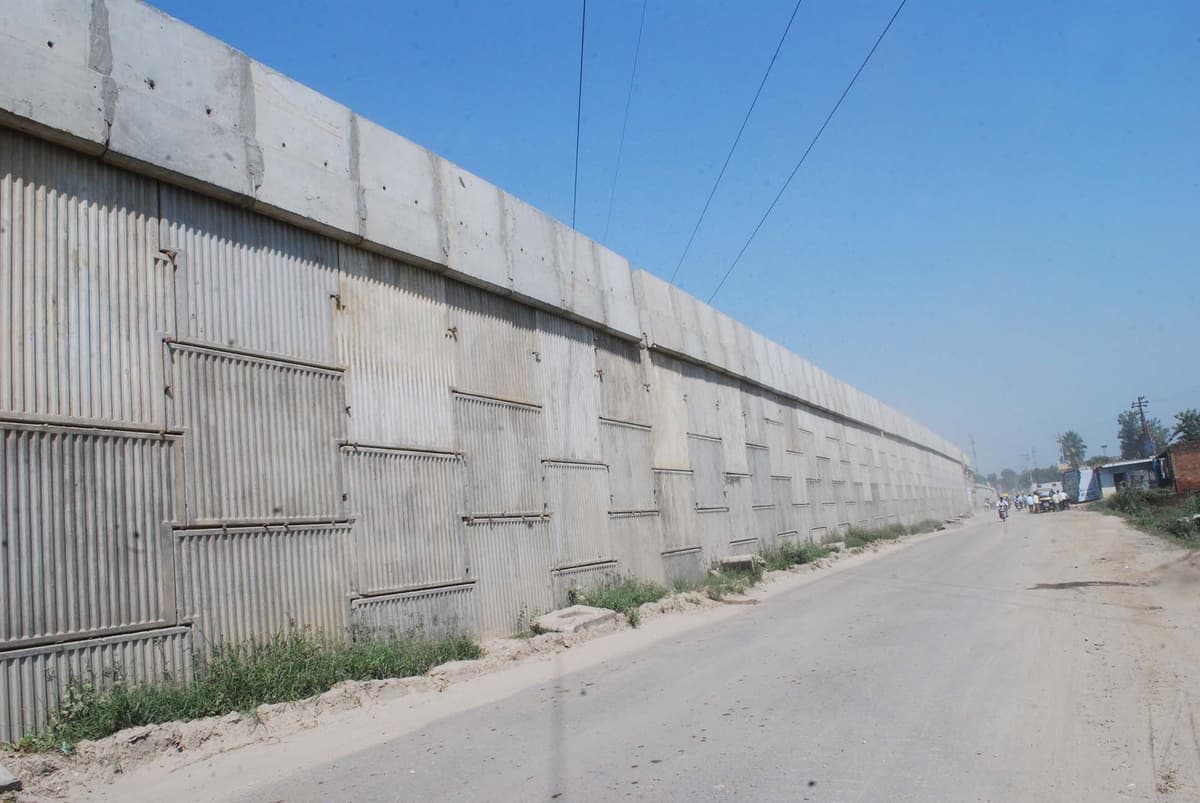

Meerut-Muzaffarnagar (NH-58), Uttar Pradesh, India
Decongest National Highway 58 connecting Meerut to Muzaffarnagar

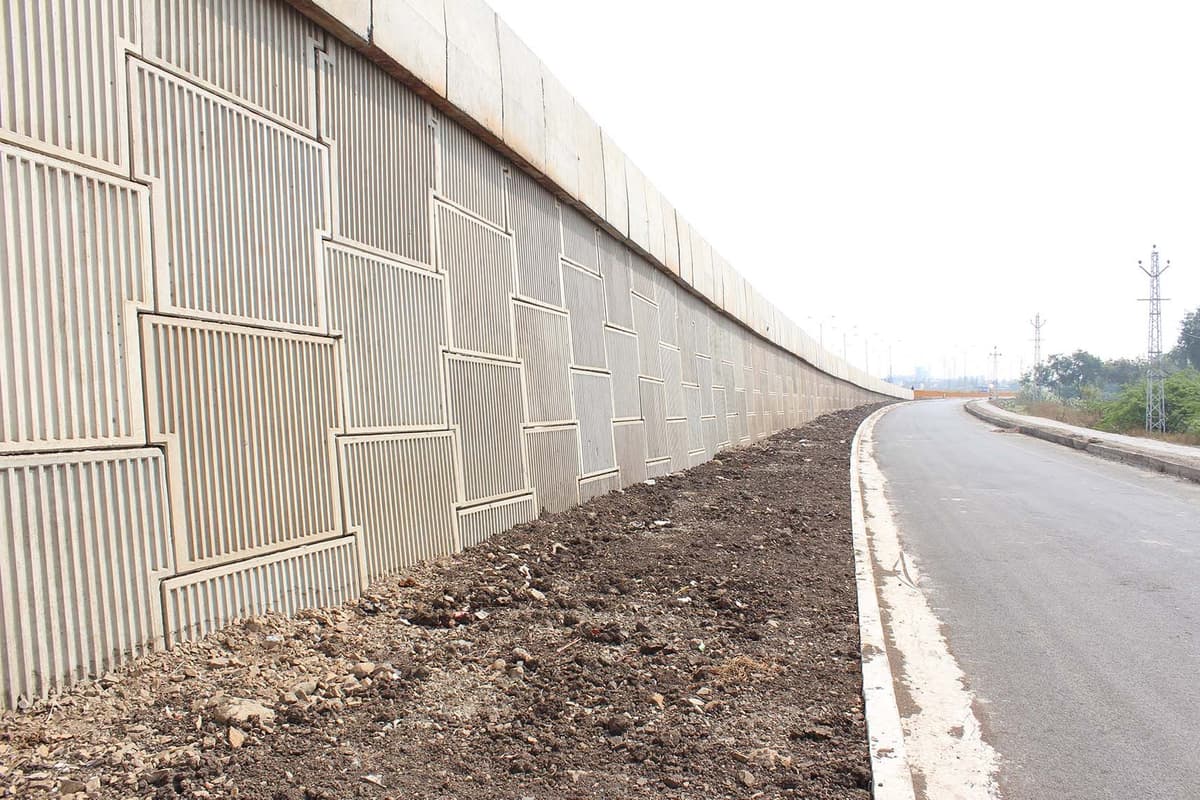

Pune-Solapur NH-9, Maharashtra, India
Reinforced Soil (RS) wall system using StrataGrid™ and StrataWall™ sys...
Manhattan, United States
