Reconstruction of Major District Road in Nashik using StrataWeb® geocells

LOCATION

Sinnar, Maharashtra, India

Client

PWD, Nashik

Product used

StrataWeb®

Application

StrataWeb® used for the construction of flexible pavement on expansive soils

About the project

The Major District Road, MDR 31, passes through Shaha and Kolpewadi villages in Sinnar Taluka, District Nashik. The road comes under the purview of the Nashik PWD and is a vital link connecting the sugarcane producing farms of Sinnar Taluka with sugar mills with heavy traffic during peak seasons.

The subgrade soil in these areas is expansive, which is colloquially called Black Cotton soil. During the dry months, the soil is very hard and shrinks, but it expands and turns very soft during the monsoons.

To cater to the expansive nature of the subgrade, StrataWeb® was considered above the subgrade. This proved to be an optimal solution, which also reduced the need for regular maintenance.

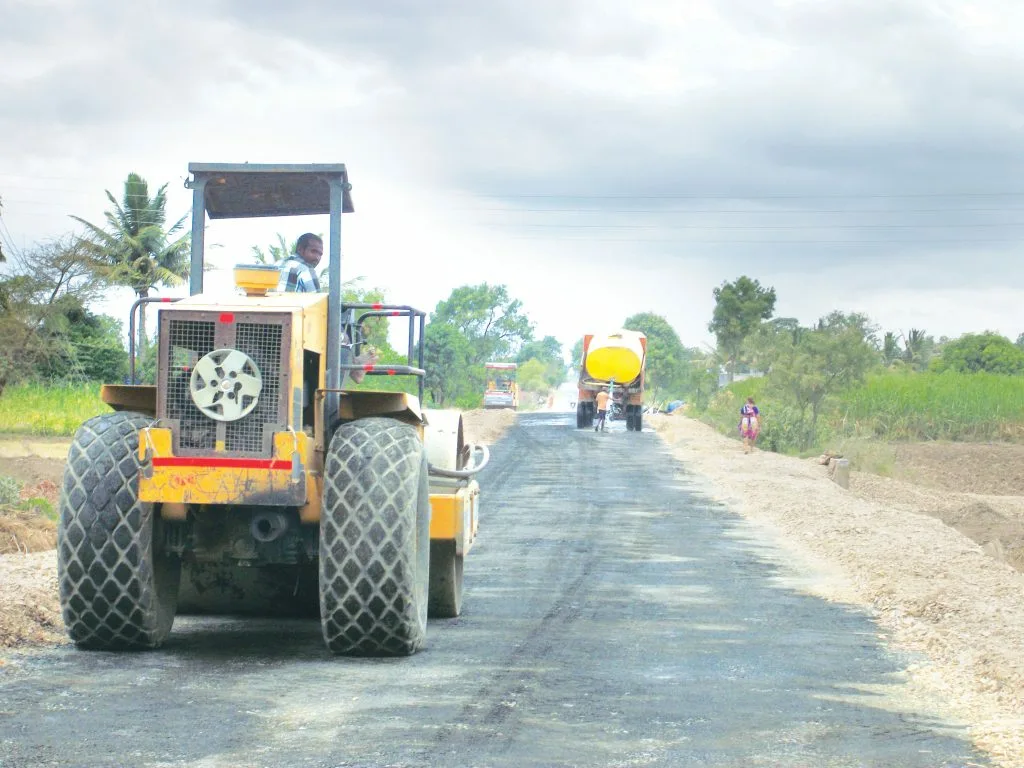

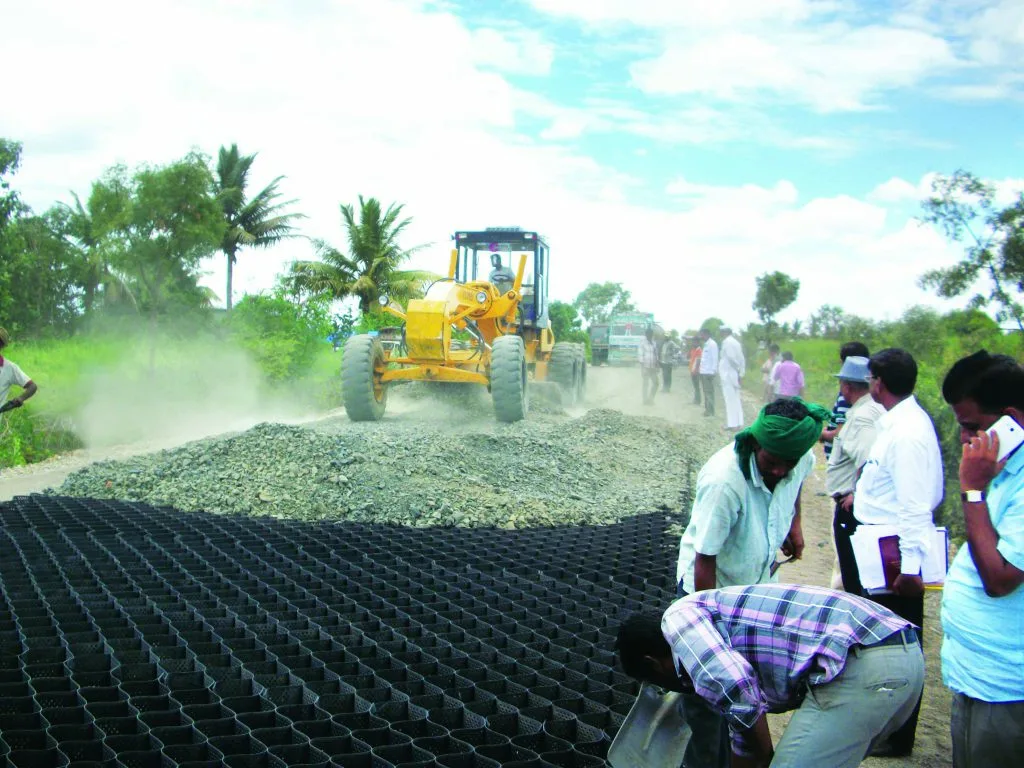

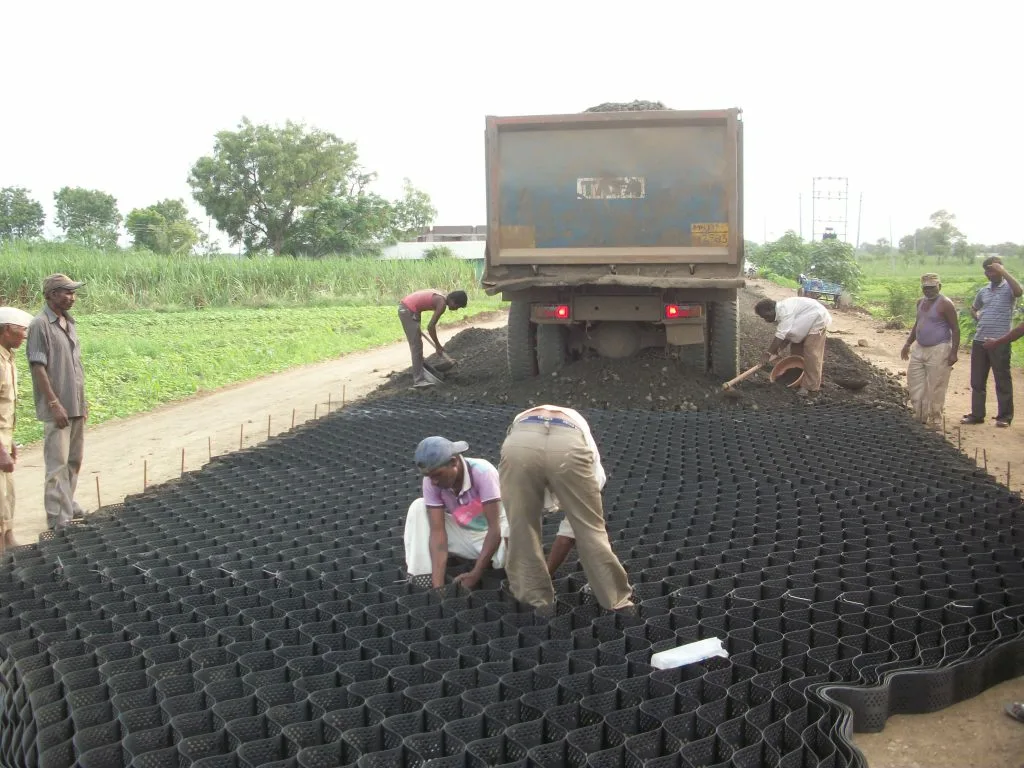

The existing road was scrapped off, and the subgrade was dressed and levelled as required and watered and compacted. A layer of sand was placed over the dressed subgrade. StrataWeb® SW 356-150 panels were placed in position above the sand with the help of metal spikes and infilled with granular sub-base (GSB) material. After the infilling and overtopping by 25mm with GSB, the surface was levelled and compacted with vibro-compactors. Traffic movement was allowed immediately thereafter.



The problems of expansive soil were overcome by using StrataWeb®. StrataWeb® resists uplifts due to expansive soils and bridges over shrinkage voids between the pavement section and the subgrade.

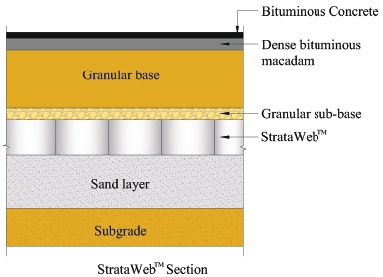

Technical drawing

CONSULTATION

From know-how to manufacture, installation
and support

Strata not only provides geotechnical products, but our team of 200+ engineers can help you with your turnkey project by supplying you with technical knowhow and support as to how our products can help you finish your projects in time while keeping costs down.

Send us your queries and we will get back to you with our expertise.

Speak to our expert now

MORE SUCCESS STORIES

Strata Geosystems uses eco-friendly solution with geogrid at KuberTila, Ram Mandir

The Kuber Tila project, located in Ram Mandir, Ayodhya is a small hillock within the temple grounds. It underpins the Ram Van Gaman path – symbolising the journey of Lord Ram from Ayodhya to Lanka. The engineering team identified the need for slope retention.

Read More »

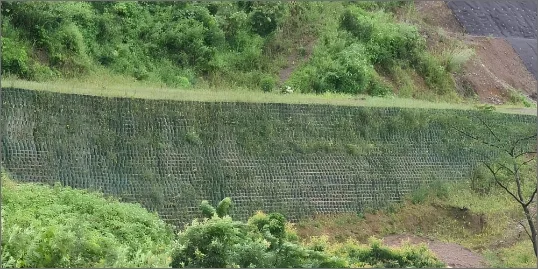

Construction of StrataWeb® Geocell Wall 32m high RS wall in the state of Manipur

This project encompasses a total length of 111 kilometers, posing the challenge of limited Right of Way (ROW) availability on either side of the proposed road’s centerline. To address this constraint, there was a need to stabilise steep slopes, manage deep cuttings, or contain filled soil within the ROW.
A total of 34 locations were identified as critical areas with deep filling requirements

Read More »

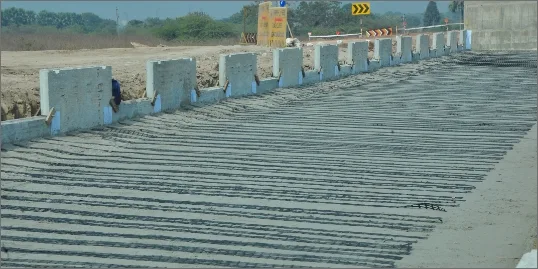

Building of RS Wall Along 42KM Highway

Strata undertook a significant project involving the design and construction of Reinforced Soil (RS) wall approaches along the NH-363 highway, spanning a 42-kilometer stretch from Mancherial to Repallewada in Telangana.

The client’s primary requirement was to find a cost-effective and efficient alternative to the conventional approach of using Reinforced..

Read More »

VIEW ALL SUCCESS STORIES

Construction of StrataWeb® Geocell Wall 32m high RS wall in the state of Manipur

December 1, 2023

Security is a top priority in the shipping industry. So when plans for DHL’s new 2,90,000 square foot distribution facility in Allentown, Pennsylvania, called for 3,450 linear feet of retaining wall along the perimeter of the 72-acre site.

Read More »

Building of RS wall along 42km highway

November 30, 2023

Security is a top priority in the shipping industry. So when plans for DHL’s new 2,90,000 square foot distribution facility in Allentown, Pennsylvania, called for 3,450 linear feet of retaining wall along the perimeter of the 72-acre site.

Read More »

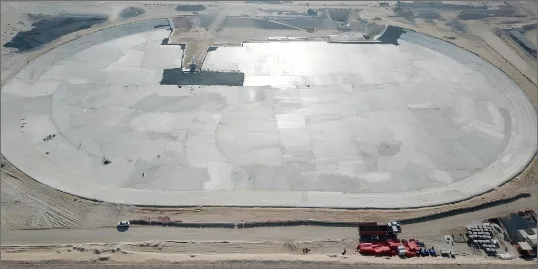

Storm water pond lining at Riyadh city North
