  5. Construction of retaining wall for container trailers movement at port

LOCATION

Aqaba, Jordan

Client

Aqaba Development Corporation

Product used

StrataGrid™ – SGU 40, SGU 120

Application

Construction of retaining walls with block fascia

About the project

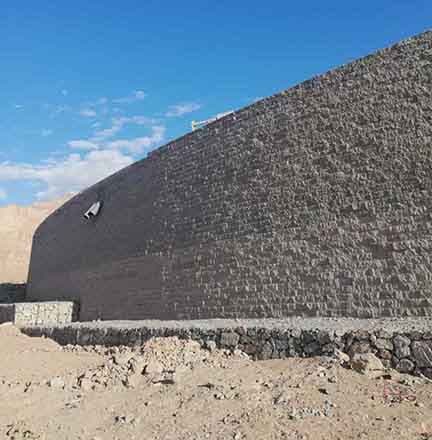

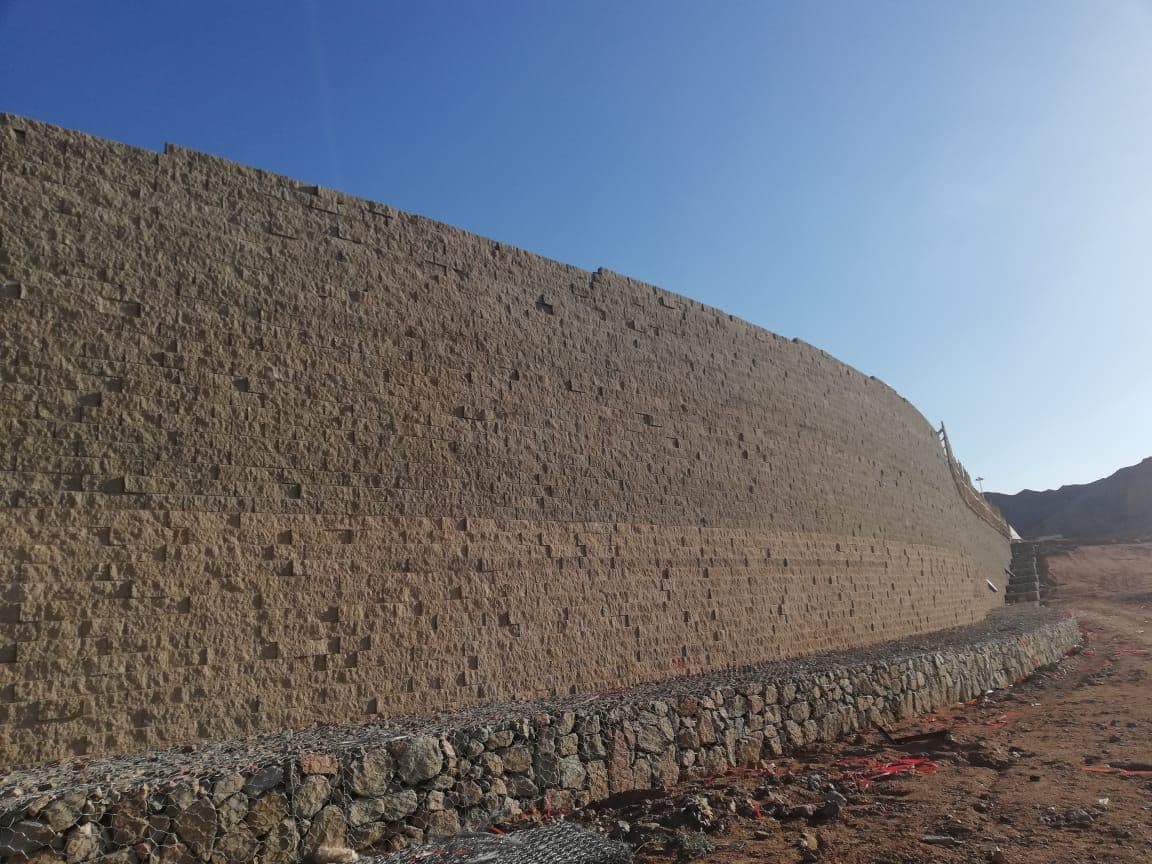

The Aqaba Development Authority at Jordan was looking for a technically advanced and cost-effective solution for the movement of heavy trailers towards their container yards (which lie in marine areas and hence have weaker sub-bases). The client preferred a solution that enabled the use of site-won material and previously-made blocks at the site.

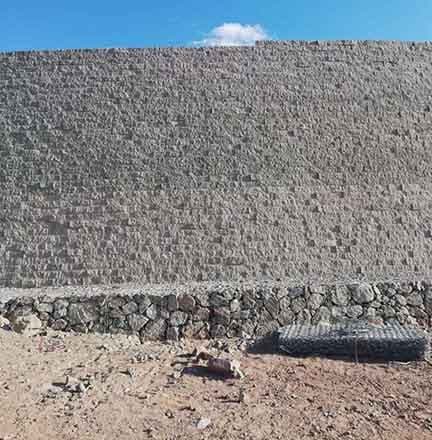

Strata’s geotechnical experts provided the designs for the retaining wall with block fascia while using site-won materials. The design was created considering the heavy loads of fully loaded containers carrying vehicles (~30 KPa). Gabions filled with stones were provided at the toe of the RS wall in 3 layers to protect the toe of the wall against the scouring effect for the entire life of the structure. Strata used their high-performance geogrid product.

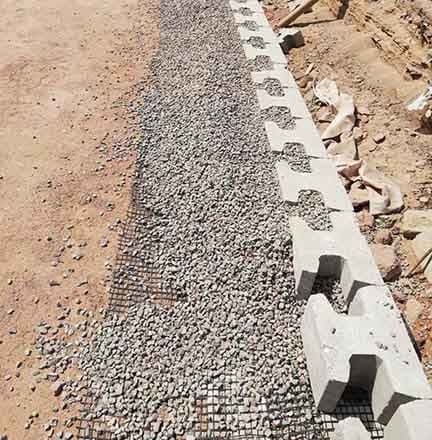

Using materials available on-site reduced the costs incurred and saved time. Heavy machinery and skilled labour were also not required as blocks can be placed manually.

StrataBlock™  has a pleasant aesthetic appearance that matched the architectural requirement of the projects.

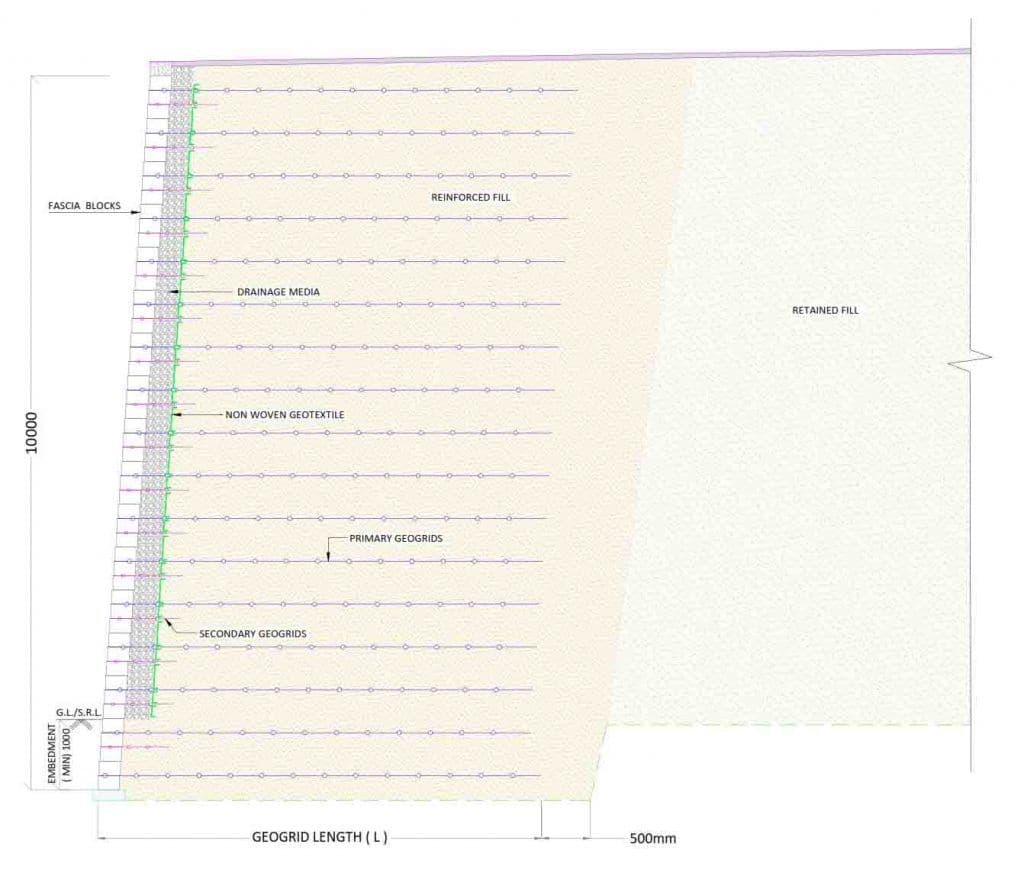

Technical drawing

CONSULTATION

From know-how to manufacture, installation
and support

Strata not only provides geotechnical products, but our team of 200+ engineers can help you with your turnkey project by supplying you with technical knowhow and support as to how our products can help you finish your projects in time while keeping costs down.

Send us your queries and we will get back to you with our expertise.
