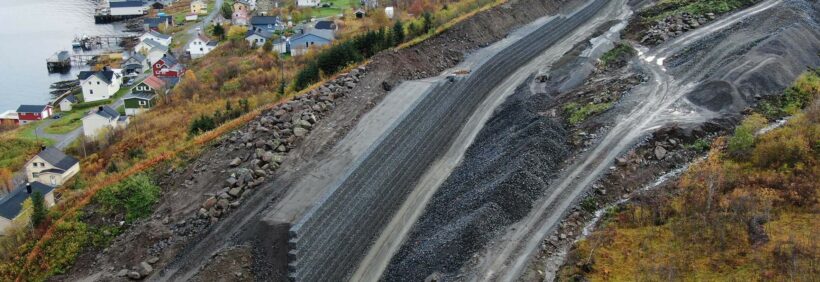

What is an MSE wall?
Mechanically Stabilized Earth (MSE) is a construction technique that improves the strength and stability of soil by incorporating reinforcement materials such as geogrids, geotextiles, or steel strips. One of its most common applications is the construction of MSE walls, which are widely used in transportation, infrastructure, and commercial development projects.
An MSE wall is a retaining structure made of compacted backfill, reinforcement layers, and facing elements that work together to create a stable reinforced soil mass. Unlike conventional retaining walls that rely primarily on the strength of concrete, MSE walls derive their stability from the interaction between the reinforcement and the surrounding soil.
Due to their flexibility, durability, and cost-effectiveness, MSE walls have become a preferred solution for many civil engineering projects.
Components of an MSE wall
Reinforcement materials
Reinforcement is the key element that stabilizes the soil mass. Modern MSE walls commonly use geogrids, geotextiles, or steel strips to improve load distribution and resist lateral earth pressures.
Facing elements
The facing forms the visible front surface of the wall and helps retain the reinforced soil. Common facing options include precast concrete panels, modular concrete blocks, wire mesh facings, and segmental retaining wall units.
Backfill
MSE walls typically use well-draining granular backfill that can be compacted effectively and interact efficiently with the reinforcement materials.
Advantages of MSE walls
Cost-effective construction
MSE walls often require less concrete and excavation than conventional retaining walls, helping reduce overall construction costs.
Faster installation
The use of modular facing systems and reinforced soil construction allows MSE walls to be built relatively quickly compared to traditional retaining structures.
Design flexibility
MSE walls can accommodate varying site conditions, complex geometries, and significant wall heights, making them suitable for a wide range of projects.
Durability
When designed with appropriate reinforcement and drainage systems, MSE walls can provide long-term performance under heavy loads and challenging environmental conditions.
Sustainability
MSE walls often require fewer construction materials than conventional retaining walls and can reduce the overall environmental footprint of a project.
Applications of MSE walls
Highway and railway embankments
MSE walls provide support for transportation corridors, helping maintain stability and reduce the risk of slope failure.
Bridge abutments
Many bridge approaches and abutments use MSE wall systems because they can support substantial loads while simplifying construction.
Slope stabilization
MSE walls are widely used to stabilize steep slopes and reduce the risk of erosion and landslides.
Waterfront and infrastructure projects
Ports, waterfront developments, culverts, and utility infrastructure often incorporate MSE walls to provide reliable earth retention.
Commercial and urban developments
MSE walls are frequently used in parking structures, industrial facilities, residential developments, and landscaping projects where grade changes require earth retention.
Why are geogrids used in MSE walls?
Geogrids are among the most commonly used reinforcement materials in modern MSE walls. They interact with the surrounding soil through friction and interlocking, creating a reinforced soil mass capable of resisting lateral earth pressures and supporting structural loads. This reinforcement mechanism improves stability, reduces deformation, and allows the construction of taller and more economical retaining structures.
