StrataWeb® geocells – A slope erosion protection system for embankments

LOCATION

East of Amman, Jordan

CLIENT

The Jordan Ministry of Energy and Mineral Resources (MEMR)

PRODUCT USED

StrataWeb®

APPLICATION

Erosion control

About the project

The Jordan Ministry of Energy and Mineral Resources (MEMR) was planning to build a petroleum strategic reserves terminal in the east of Amman, Jordan. They wanted to increase the petroleum storage capacity in the area, which required an increase in the base width of the embankment. The slopes of the embankment required protection from slope erosion.

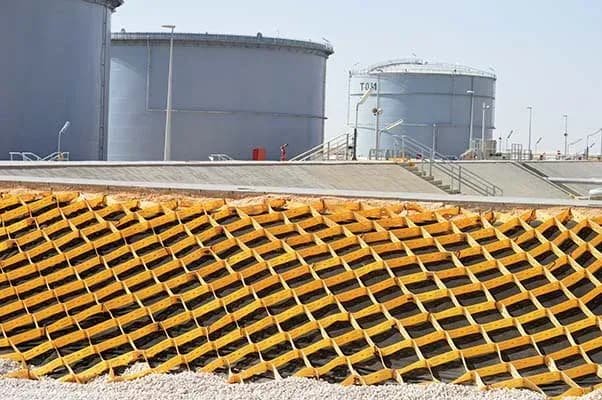

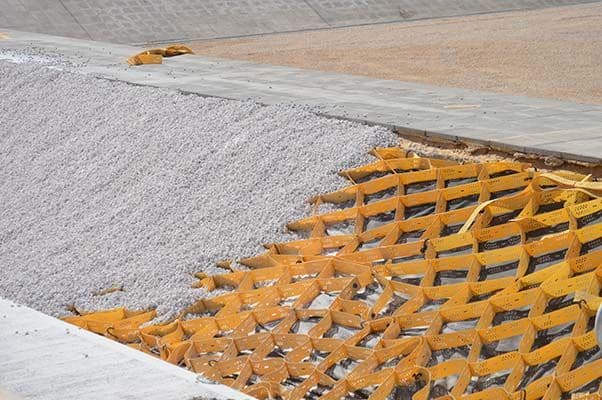

StrataWeb® geocell slope erosion protection system was recommended by geotechnical experts at Strata. This cellular confinement system is a low-cost, high-performance solution that addresses slope erosion challenges and is extremely fast to construct at the same time. StrataWeb® is used along the slope surface to prevent erosion by effective confinement of the aggregate infill within its three-dimensional structure. This helps in protecting the embankment from slope erosion.

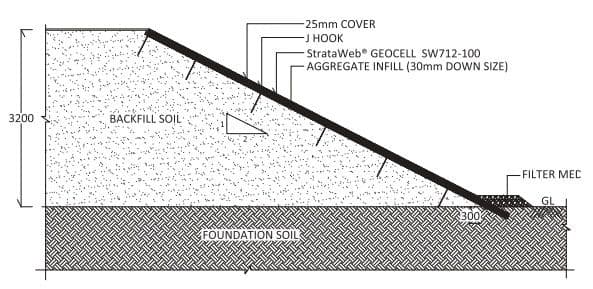

Technical Drawing

CONSULTATION

From know-how to manufacture, installation and support.

Strata not only provides geotechnical products, but our team of 200+ engineers can help you with your turnkey project by supplying you with technical knowhow and support as to how our products can help you finish your projects in time while keeping costs down.

Send us your queries and we will get back to you with our expertise.
