LOCATION

Kedarnath temple, Uttarakhand, India

CLIENT

Nehru Institute of Mountaineering

PRODUCT USED

StrataWeb®

APPLICATION

StrataWeb® for reconstruction of destroyed roads

About the project

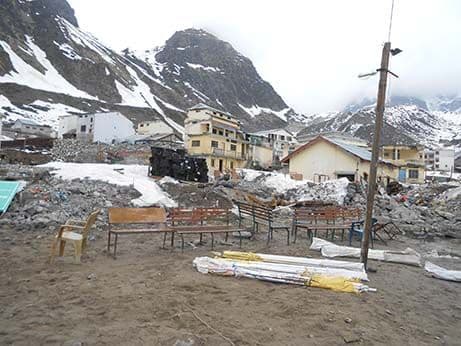

The Kedarnath Valley has always been affected by soil erosion due to weather conditions. Unprecedented flash floods in June 2013 exacerbated this erosion. Landslides and mudslides caused by a devastating cloudburst ravaged the area. The shrine was closed to pilgrims for a year. The debris needed to be cleared and re-establish the area’s ground stability before allowing pilgrims through again.

Keeping in mind the need for timely completion and the need for providing a quality solution notwithstanding the low CBR and poor quality soil, StrataWeb® geocells were recommended. StrataWeb® geocell panels were transported to the nearest base and were airlifted to Kedarnath.

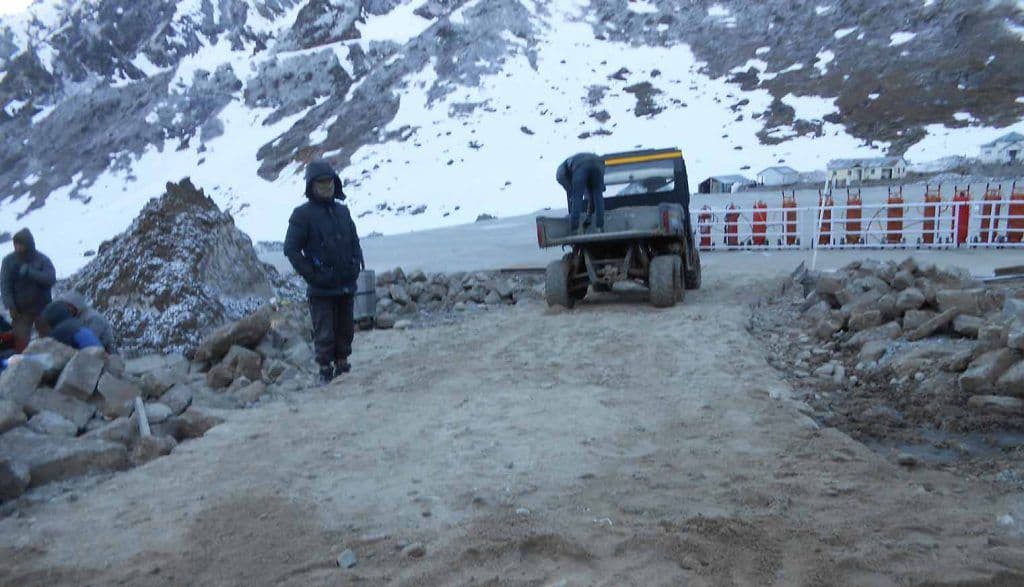

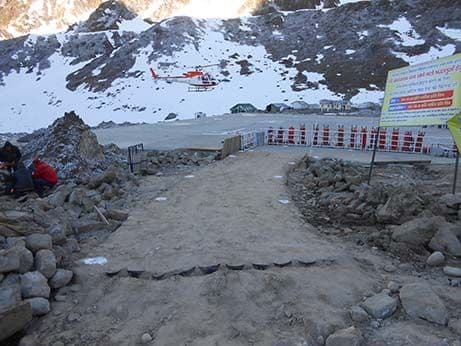

StrataWeb® SW 356-150 geocells were used for constructing the access road and pavement from the helipad to the temple. The geocells were infilled with local infill material (GSB). This was a more practical and long-term solution.

image-1
image-2
image-3

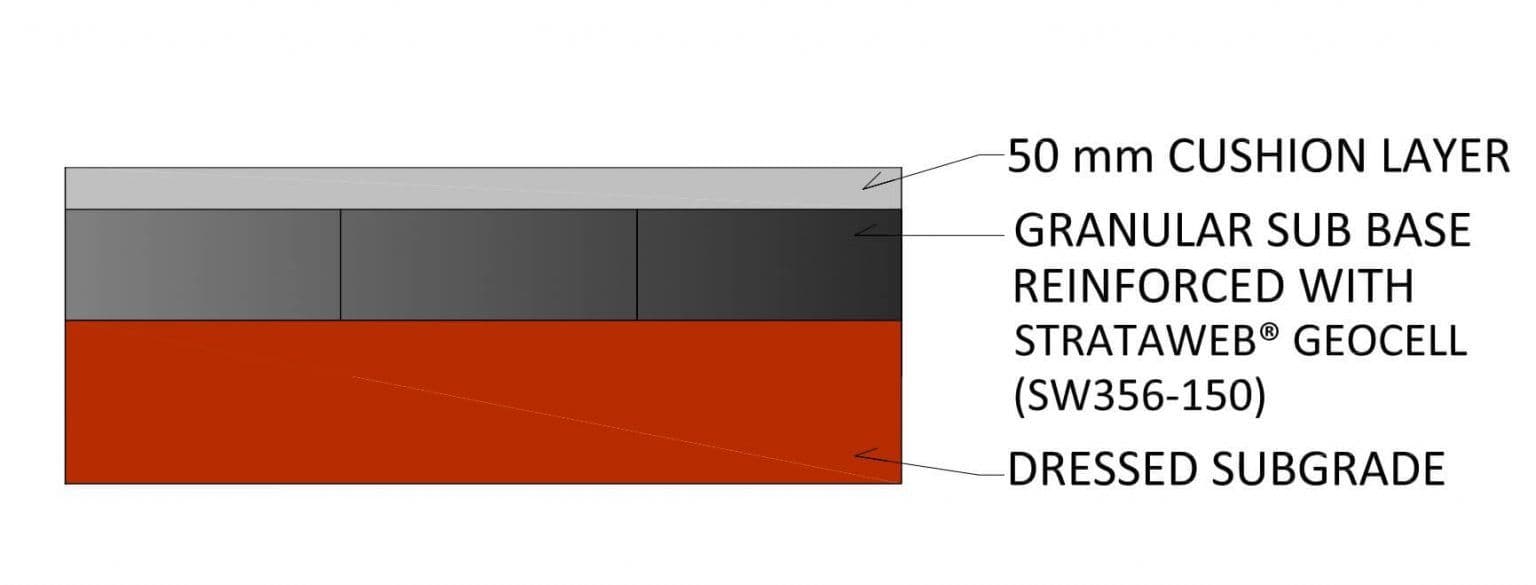

Technical Drawing

Technical Drawing
