LOCATION

Al Bidda Park, Doha, Qatar, Middle East

CLIENT

Pioneers of Middle East

PRODUCT USED

StrataWeb® and StrataGrid™

APPLICATION

Soil reinforcement and retaining wall

About the project

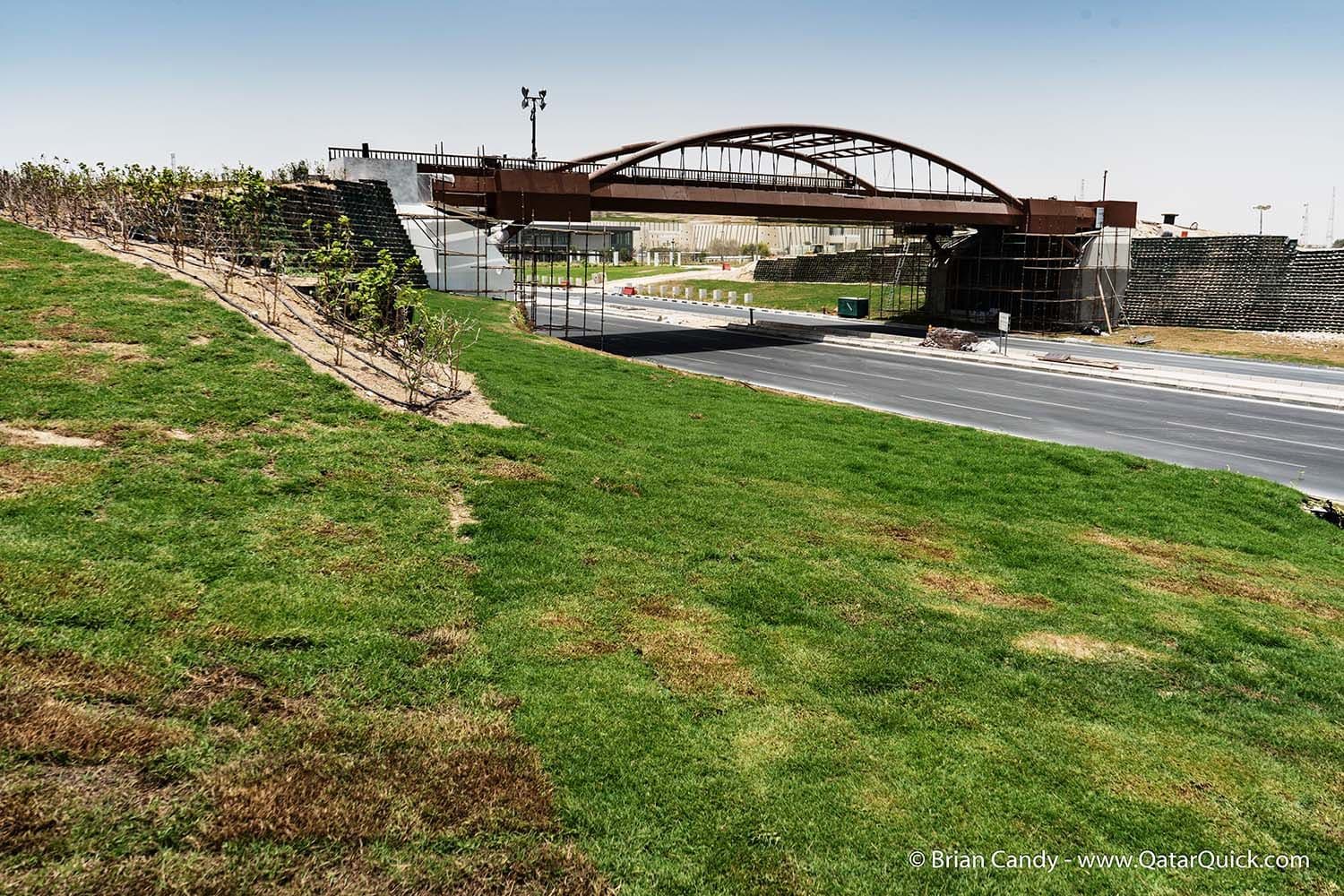

The client was looking to build an approach to the crossover, a walkway at Al Bidda Park Doha, Qatar. Considering the limitation of space at the site and the topographic profile of the soil, a reinforced soil wall with geocell fascia was suggested.

The limited footprint availability, aesthetically pleasing solution owing to the landscaping requirement, the topographic profile having variable contour was a challenge.

Our high-quality soil reinforcement products StrataWeb® and StrataGrid™ were used to construct a reinforced soil structure for the approach to the walkway. Strata collaborates with the clients to provide economically sustainable designs. The client required a ‘green’ slope, vegetation of the finished reinforced slope, and hence StrataWeb® green fascia geocells was suggested.

Our reinforced soil wall solution helped the client to save up to 20% of the cost and gave a green look to the reinforced soil wall.

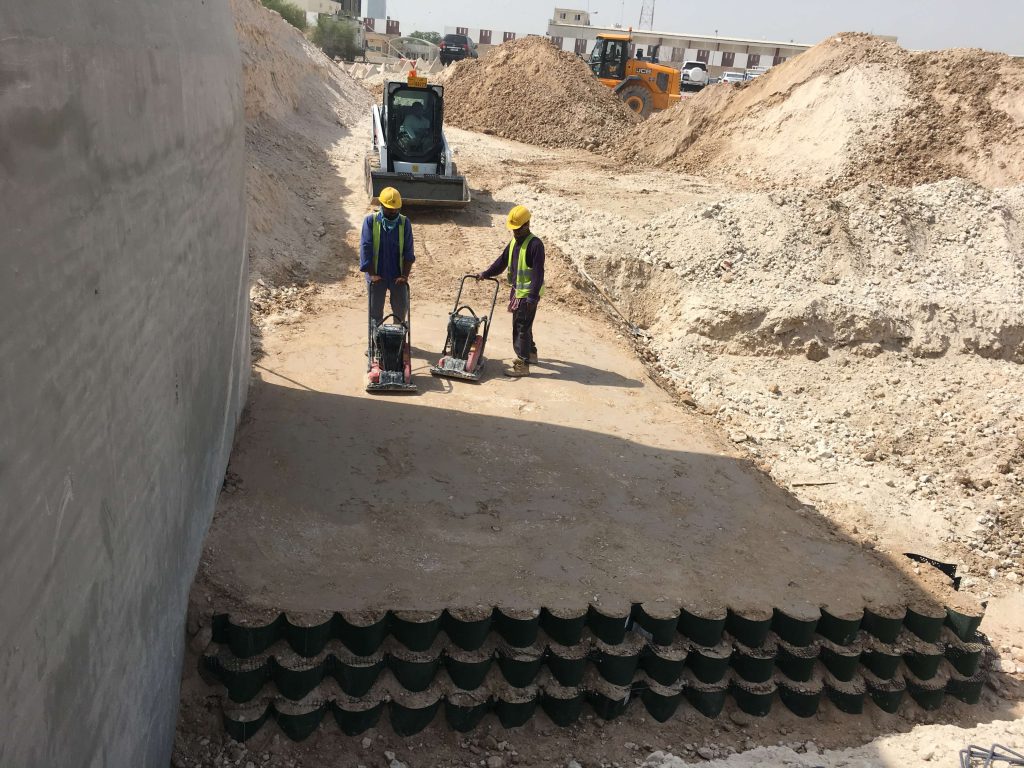

image-1

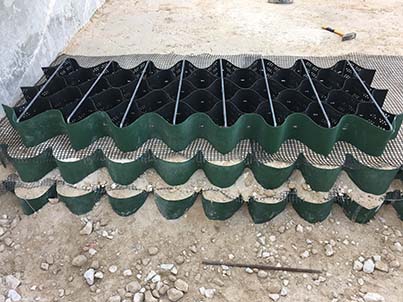

image-2

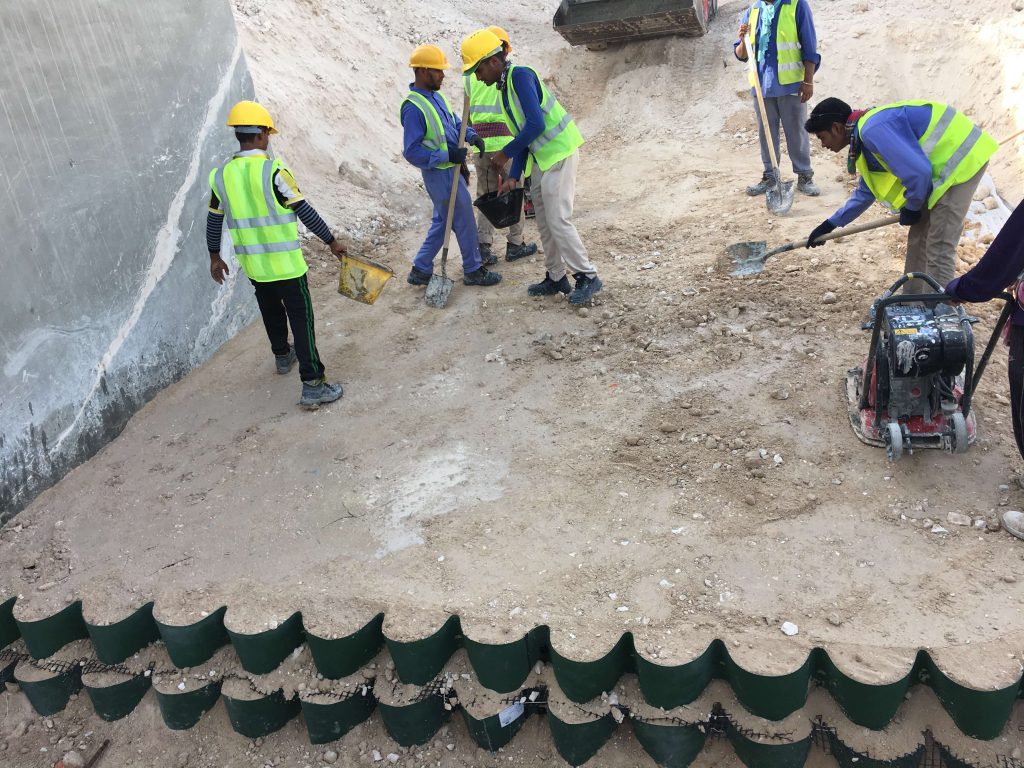

image-3

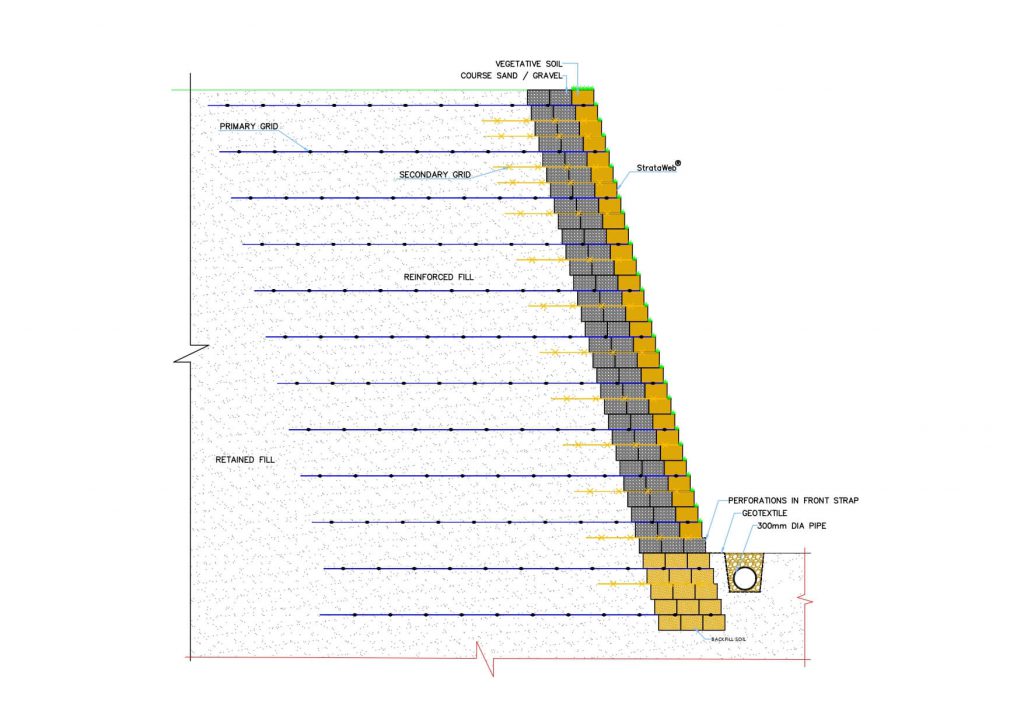

Technical Drawing

Technical Drawing
