Slope protection for abutment of bridge at National Highway-91 using StrataWeb® geocells

LOCATION

NH-91, Aligarh-Ghaziabad, Uttar Pradesh, India

Client

Galfar Engineering & Contracting India Pvt. Ltd.

Product used

StrataWeb®

Application

Erosion control

About the project

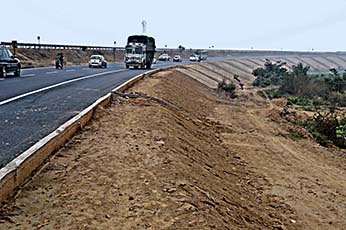

The client was constructing the extension of the Aligarh-Ghaziabad section of the National Highway NH-91 in Uttar Pradesh. The highway extension converts the existing two-lane carriageway into a modern four-lane highway. The side slopes of the highway embankments required protection against erosion from rainwater runoff flowing down the slopes. Since the right of way was restricted, the slopes were steep as much as 1.5H: 1V with a maximum height of 12 m.

Stone pitching is the conventional erosion control for bridge abutments. Stone was not available near this site and was required to be brought from quarries with long leads, and transport costs were prohibitive. Also, considering that the slopes were as steep as 1.5H:1V, it would not have been feasible to have stable pitching.

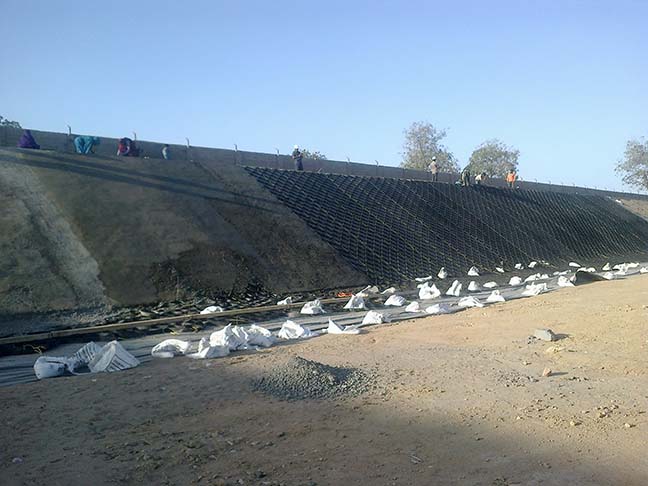

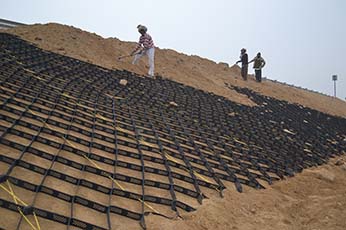

Slope protection with StrataWeb® geocells infilled with vegetated soil was a more practical and long-term solution under the circumstances. Geocells are an effective way to protect the soil along a slope from erosion by providing a stable layer of confined material over the surface. StrataWeb® geocells of 75 mm depth with local soil infill were proposed to support vegetation growth and provide a green finish so that the infill does not get washed away.

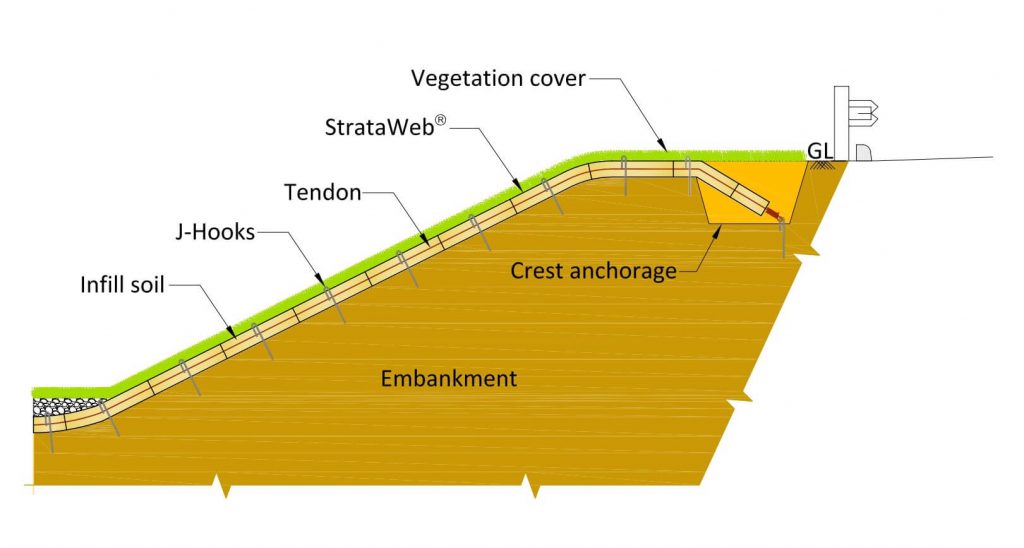

Technical drawing

CONSULTATION

From know-how to manufacture, installation
and support

Strata not only provides geotechnical products, but our team of 200+ engineers can help you with your turnkey project by supplying you with technical knowhow and support as to how our products can help you finish your projects in time while keeping costs down.

Send us your queries and we will get back to you with our expertise.

Speak to our expert now

MORE SUCCESS STORIES

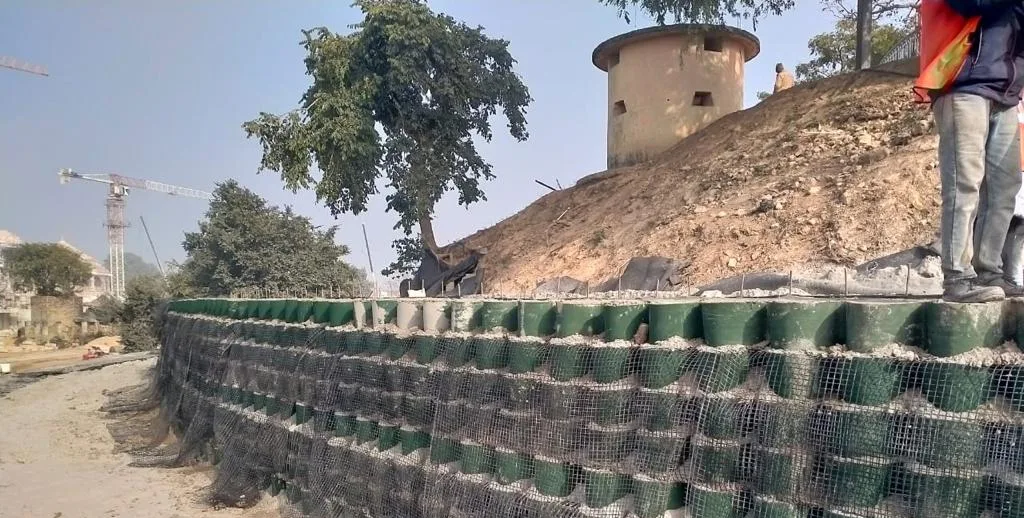

Strata Geosystems uses eco-friendly solution with geogrid at KuberTila, Ram Mandir

The Kuber Tila project, located in Ram Mandir, Ayodhya is a small hillock within the temple grounds. It underpins the Ram Van Gaman path – symbolising the journey of Lord Ram from Ayodhya to Lanka. The engineering team identified the need for slope retention.

Read More »

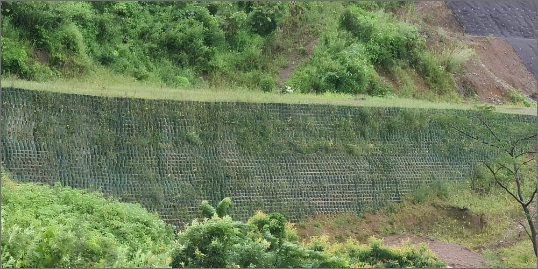

Construction of StrataWeb® Geocell Wall 32m high RS wall in the state of Manipur

This project encompasses a total length of 111 kilometers, posing the challenge of limited Right of Way (ROW) availability on either side of the proposed road’s centerline. To address this constraint, there was a need to stabilise steep slopes, manage deep cuttings, or contain filled soil within the ROW.
A total of 34 locations were identified as critical areas with deep filling requirements

Read More »

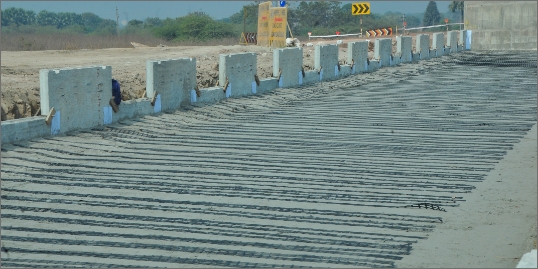

Building of RS Wall Along 42KM Highway
