What is the degree of flexure?
The degree of flexure refers to the extent to which a beam or structural element bends under external loads . Every material has a certain limit and they respond to bending moments and shear forces differently. The material or object may fracture or become deflected. This aspect of design is important as it assists engineers creating structures that are neither too soft nor too rigid.
Importance of degree of flexure in structural engineering
- Structural safety: Flexural analysis is of fundamental importance for the structural integrity and solidification of a wide variety of structures, such as bridges, buildings and industrial structures, as it allows the engineer to predict how the material will respond to bending and shear loads. Flexure degree is very much related to the structural dynamic response.
- Material failure: Different materials, such as steel, concrete, timber or composites have different responses to stress, and an accurate assessment of flexural strength prevents failure of materials due to excessive loads.
- Design efficiency: When engineers grasp the concept of flexure, it enables them to build structures that are less expensive because of the use of limited material to ensure safety while cutting down on costs. Flexure also helps in determining the amount of reinforcement required in the concrete structures.
Factors influencing the degree of flexure
- Material properties: Ductility of a material contributes to its performance under flexural loads, as ductile materials can absorb more energy and deform plastically, while brittle materials may fail suddenly under similar conditions. For instance, a steel structure can bend considerably without breaking, whereas structures from concrete are less bendable.
- Cross-sectional geometry: The cross-section of a structural element, plays an important role in determining the moment of inertia, one of the key inputs to the Flexure Formula. A larger moment of inertia generally results in a lower bending stress for a given bending moment, thus reducing the degree of flexure experienced by the beam. Longer beams tend to experience greater deflections under the same loading conditions compared to shorter beams.
- Load type and distribution: Dynamic loads, such as those caused by moving vehicles or machinery, can induce higher stresses and more significant deflections compared to static loads. Concentrated loads create localized bending moments, while uniformly distributed loads result in more uniform bending.
- Support conditions: The type of support points like clamped supports, cantilever supports, and their location have a direct relationship with the amount of deformation a structure will undergo. Proper design of supports restrains flexure while increasing stability of the structure.
Mathematical calculation of degree of flexure
- Bending moment and flexural stress: Bending moment refers to a measure of the internal- external load in consequence of which a material deforms. The bending moment is expressed as ‘M’ and it varies along the beam depending on the type of load and support conditions. In contrast, flexural stress describes how this load is applied along the length of the structure. It is calculated using the bending moment and the geometry of the beam, specifically its section modulus.
- Flexural formula for deformation: The flexural formula, usually represented as M/I = σ/y = E/R, defines the bending moment M, the moment of inertia I, the stress σ, vertical distance from the neutral axis y, the modulus of elasticity E, and the radius of curvature R.
Practical applications of flexure analysis in civil engineering
- Bridge design: Bridges face constant stress from vehicles and environmental forces. Flexure analysis allows engineers to create designs that handle the bending safely, using materials and shapes that distribute stress effectively. When designing a bridge, engineers consider the varying loads that will act upon it, including self-weight and the weight of moving vehicles with flexure analysis.
- Building construction: All construction practices today have been shaped such that the buildings constructed are able to resist varying agents of loads. Flexure is also a key component in considerations for slabs,’ beams and columns’. It helps determine the thickness, reinforcement requirements and layouts to resist under heavy loads.
- High-rise structures: Flexural analysis is significant in high rise buildings, due to the effects of gravity loads, lateral forces and the interaction between different structural elements. In tall structures, the long-spans and slenderness of structural elements can lead to stability concerns, such as buckling. Torsional effects can also occur due to uneven loading.
Controlling degree of flexure
Modern construction offers a range of techniques to manage flexure effectively:
- Reinforced concrete: Incorporating steel reinforcement into concrete makes it more ductile and increases its tensile strength.

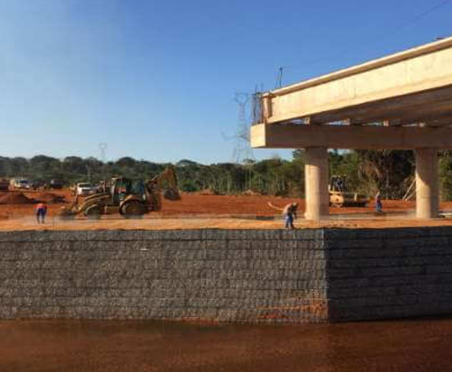

- Geosynthetics: Geosynthetics, such as geogrids and geomembranes, are frequently employed in soil-reinforced systems. By improving the load transfer mechanism, geosynthetics prevent localized deflection, ensuring more uniform bending across structures.
- Composite materials: Utilizing composite systems with diverse strengths and flexibility gives engineers more control over mid-span deflection.
