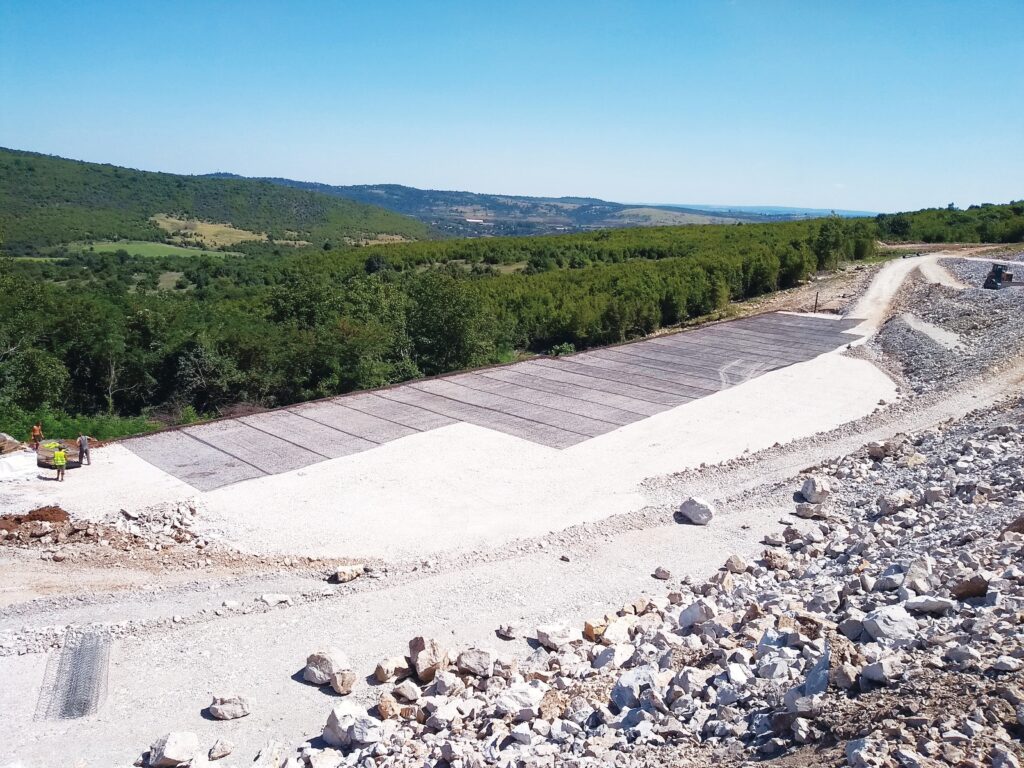

The client stipulated that they needed a fast-track geotechnical solution to assist in constructing an embankment for a new highway between Hemus University and the town of Hemus, Jablanica. The primary challenges of this project were to complete it within a short timeline & have minimal environmental impact due to construction.

StrataGrid™ was utilized as the solution for soil reinforcement of the retaining structures, with low excavation volume. This not only had economic benefits but also helped us complete the work within the limited time period.

The Reinforced Soil System was designed to last for as long as 120 years. It was constructed using a fortified soil structure with fascia consisting of double twisted hexagonal wire mesh and anti-corrosion coating.

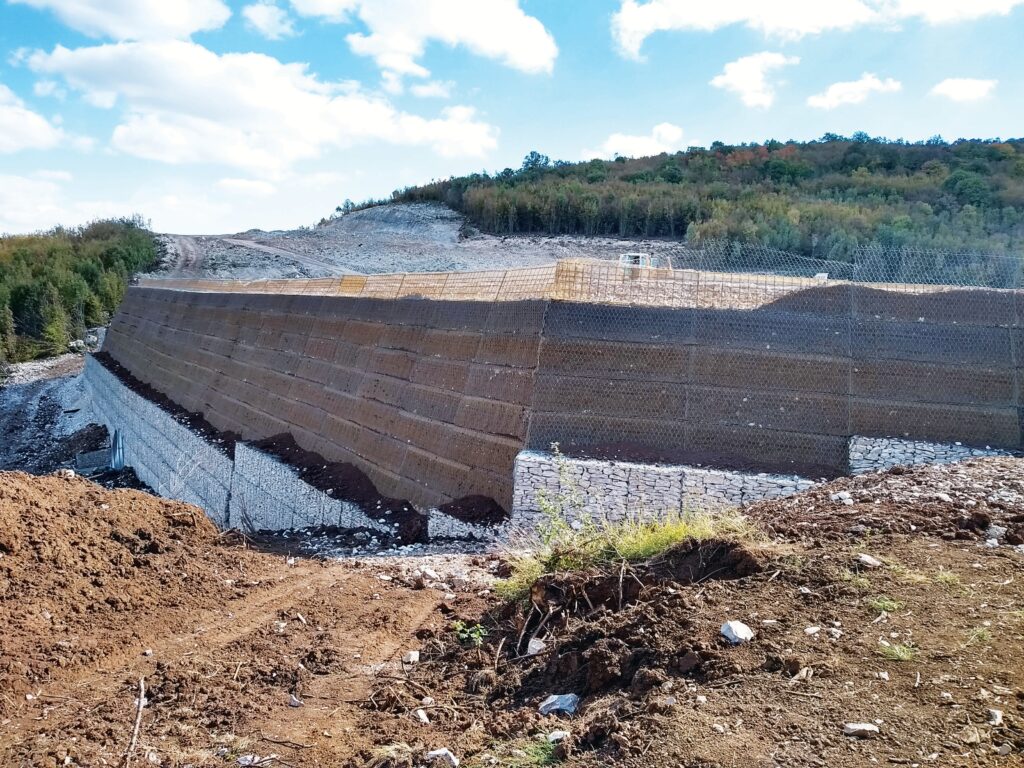

The strengthening facility consists of two parts. The foundations are filled with gabion modules with a vertical stone face as high as 1 m. The second zone is 26.0 m high and consists of factory modular fascia systems with a 70° slope angle face. It is then laid with 30 cm of fertile soil that supports vegetation.

Reinforced Soil Structures using StrataGrid™ are widely used globally due to characteristics like excellent strength, durability, & longevity. Our clients have complete assurance as the structures are designed to conform to International Design Standards and are very cost-effective. Consequently, StrataGrid™ was selected as an innovative solution for this embankment construction.
